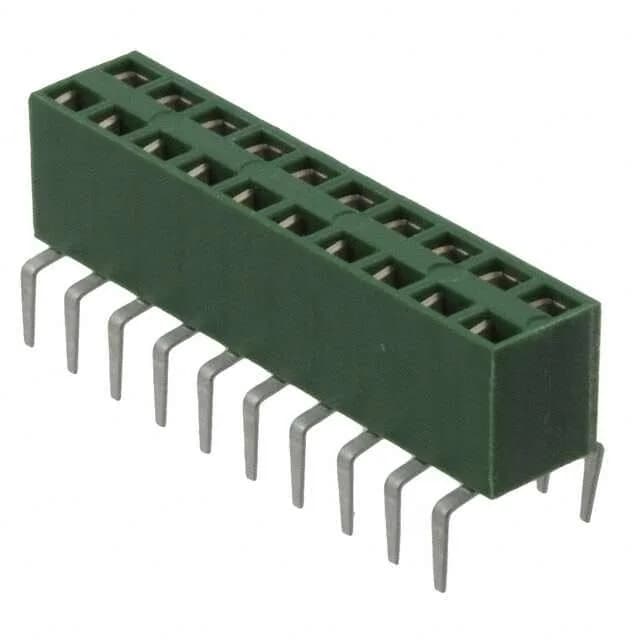

TE Connectivity AMPMODU HV-100 receptacle, order code 1-829264-0, 20 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination.
TE 1-829264-0 AMPMODU HV-100 Receptacle, 20 Pos, 2.54mm
MPN1-829264-0
Active
TE Connectivity AMPMODU HV-100 receptacle, order code 1-829264-0, 20 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination.
$3.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
