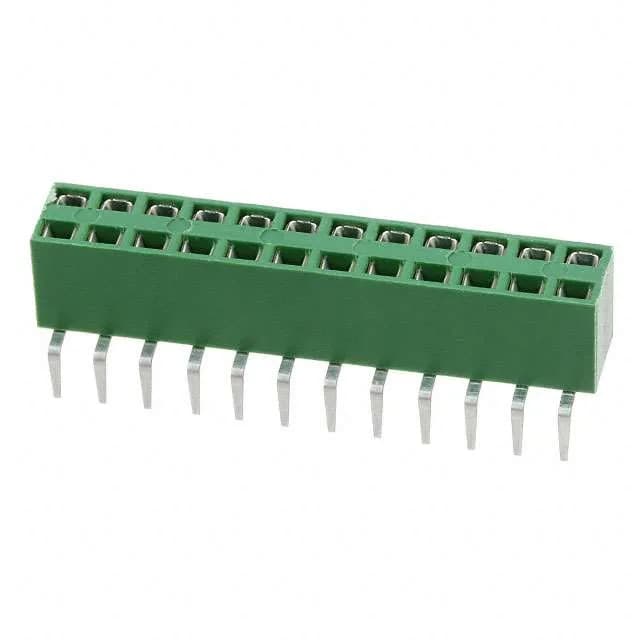

TE Connectivity AMPMODU HV-100 receptacle, order code 1-829576-2, 24 positions, dual row, 0.100" (2.54mm) pitch, tin-plated female socket contacts, through-hole solder termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 98.4µin (2.50µm) |
The 1-829576-2 is the 24-position dual-row member of TE's AMPMODU HV-100 receptacle line, configured for bottom or top entry with a push-pull fastening system. Tin-plated mating and post contacts carry a 98.4µin (2.50µm) thickness, and the green PBT insulation stands 0.244" (6.20mm) above the board.
The 1-829576-2 is a Board to Board receptacle with through-hole solder termination, accepting bottom or top entry.
