Pitch and position count

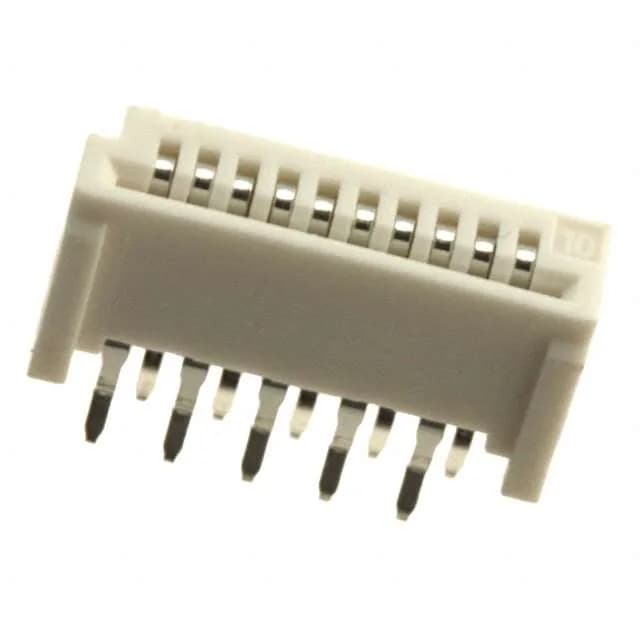

The 1-84534-0 is a 10-position FFC connector on a 0.049" (1.25mm) pitch, vertical 1-sided contact style, through-hole mount with kinked pin termination. Rated 1A per contact at 50V, with tin-plated phosphor bronze contacts and a glass-filled PBT housing rated -40°C to 85°C.
FFC fit and board height
Accepts 0.30mm thick FFC with a tapered cable end. The mated height above board is 0.307" (7.80mm) — the vertical contact beam wipes the pad on insertion without a secondary latch.
