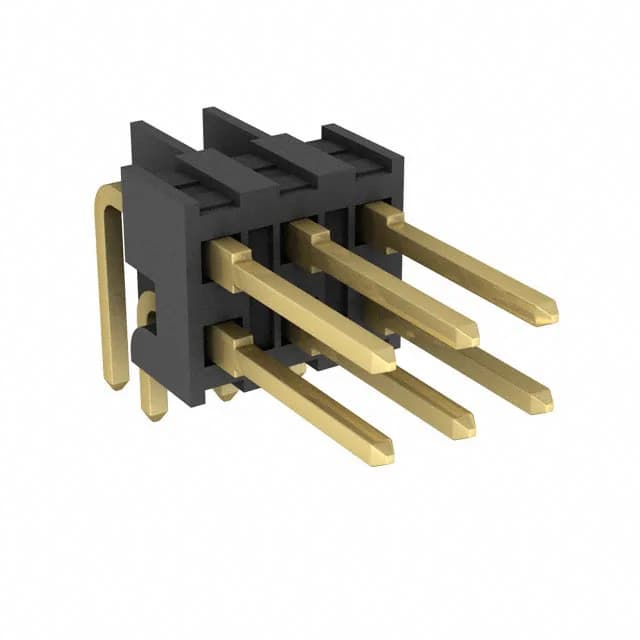

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold, 3A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The square male pins measure 0.318" (8.08mm) on the mating side and 0.110" (2.79mm) on the solder tail — the post length suits standard 1.6mm PCBs with through-hole soldering. The unshrouded design gives the board layout engineer direct access to the pin tips for probing or wire-wrapping, but offers no keying or polarization beyond the row pattern.
