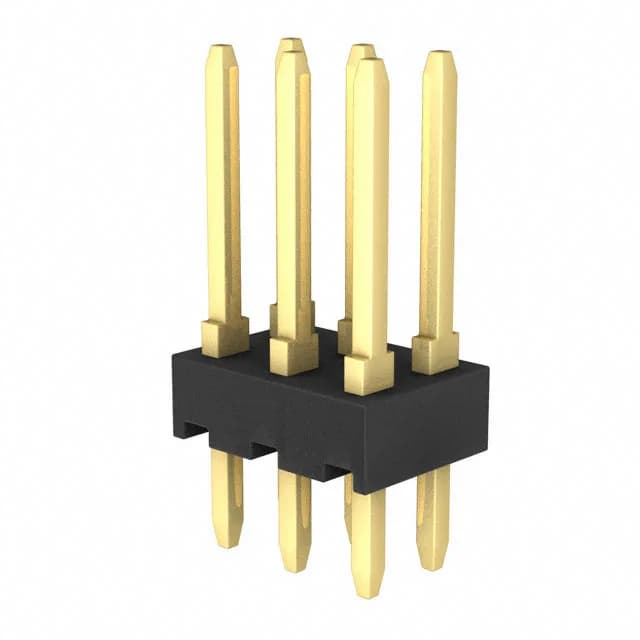

TE Connectivity AMPMODU Mod II, Header, Male Pin, 6 Positions, 2.54mm Pitch, Through Hole, Solder, Unshrouded, Gold Mating Finish, 3A, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Compared to a 4-position shrouded header like 1-1871673-2, this part trades mechanical protection for a smaller footprint and lower profile (0.090" insulation height).
Termination is through-hole solder; the phosphor bronze contacts with gold flash on the post ensure reliable soldering.
The mating pitch is 0.100" (2.54mm) with a row spacing of 0.100" (2.54mm).
Yes, it is RoHS compliant.
The 1318699-3 is a 12-position, 4-row, shrouded header with a latch lock and 0.165" pitch — not a direct footprint replacement but a higher-density alternative from the same series.
