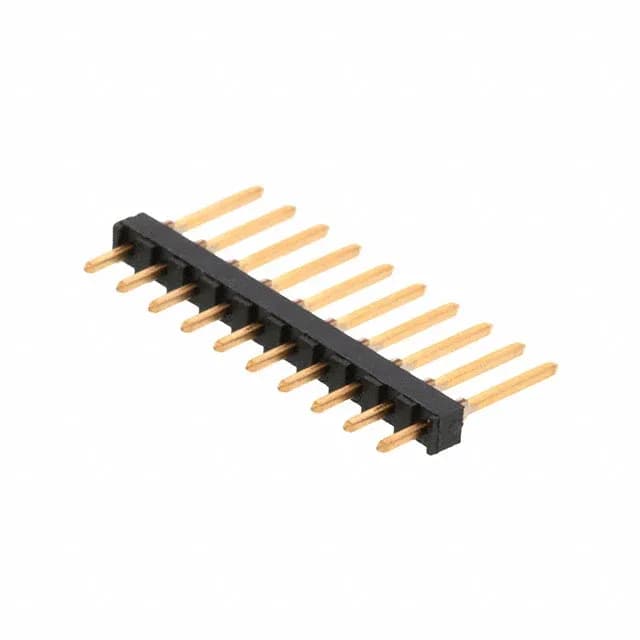

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 10 Positions, 0.100" (2.54mm) Pitch, Unshrouded, Through Hole, Solder Termination, Gold Mating Finish, 3A Rated
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The unshrouded design gives you access to the pins for manual wiring or test points, but leaves the contacts exposed without a polarization wall.
Termination is through-hole solder; the 0.125" (3.18mm) post length fits standard 1.6mm PCBs with room for through-hole soldering.
Confirm the contact finish and post length against your application — gold flash vs. tin plating changes mating cycle life.
