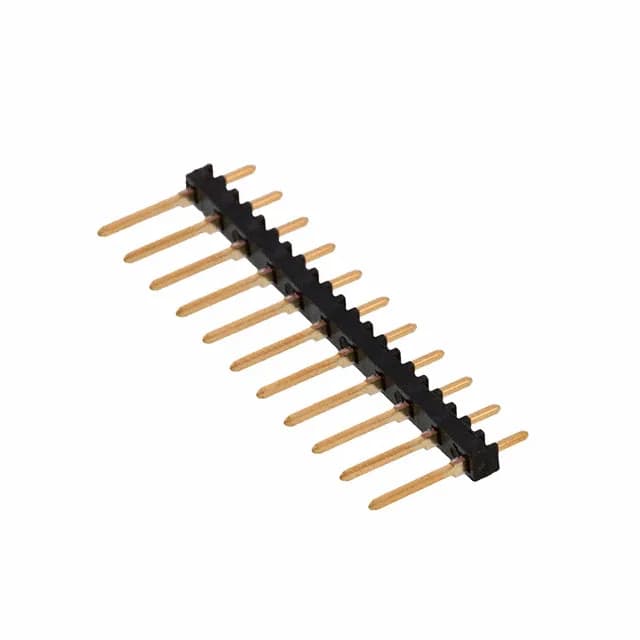

TE Connectivity AMP Connectors AMPMODU Mod II header, 1-87221-0, 11 positions, single row, 0.150" (3.81mm) pitch, unshrouded, through hole, male pin, gold flash on post, 30.0µin gold on mating surface, black thermoplastic housing, RoHS compliant, Active.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Parameter | Value |
|---|---|
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 11 |
| Contact finish - post | Gold |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-87221-0: Unshrouded means it mates with a standard AMPMODU Mod II socket housing — no keying or polarization beyond the pin pattern.
The post length is 0.125" (3.18mm) — short enough that board thickness and through-hole plating must be checked for solder-joint reliability. The circular pin shape is standard for AMPMODU Mod II.
Yes — as an unshrouded header, it mates with any standard AMPMODU Mod II socket housing of the same pitch (0.150") and position count (11). The mating contact length of 0.318" (8.08mm) provides adequate wipe for a push-pull connection.
