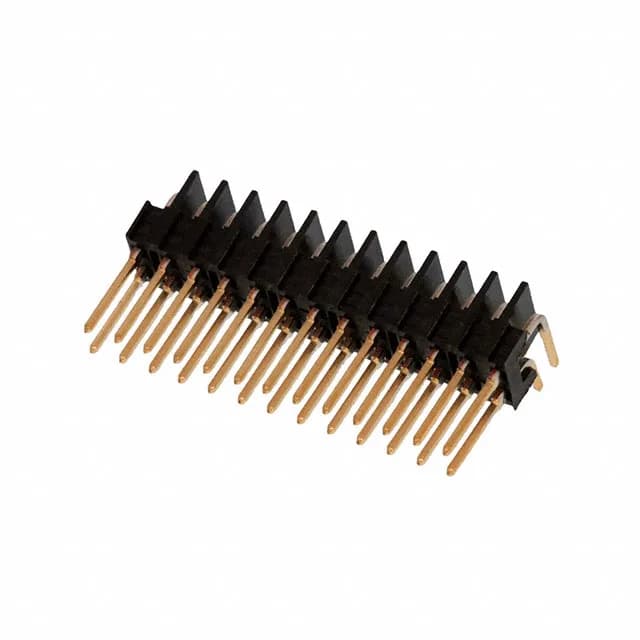

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 1-87230-3, 26 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Within the AMPMODU Mod II 87230 series the 1-87230-3's 26 positions sit between the 20-position 1-87230-1 and the 30-position 1-87230-4 — the 0.100" pitch, dual-row layout, and unshrouded profile are shared across the series, so match the position count to circuit count.
No direct pin-compatible alternative with the same 26 positions exists in the series.
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors for this part.
