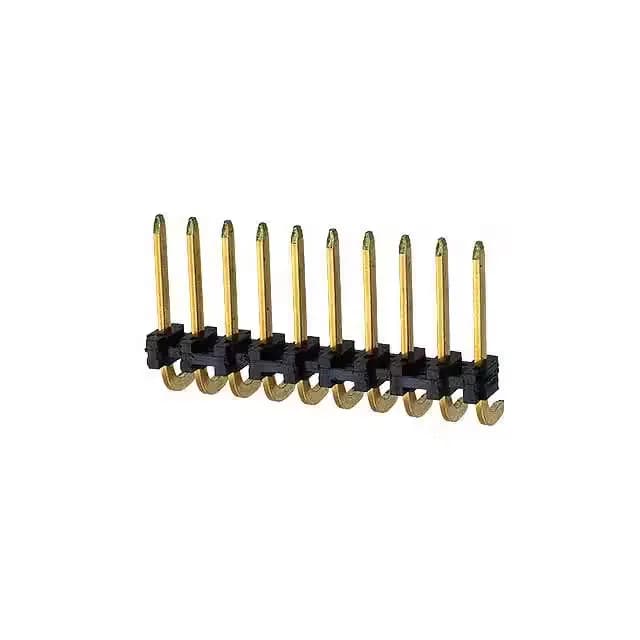

TE Connectivity AMPMODU Mod I unshrouded header, 1-87258-0, 10 positions, single row, 3.96mm pitch, through-hole right-angle, male pins, gold mating finish, 5A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.500\" (12.70mm) |
| Contact finish thickness - post | 15.0µin (0.38µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-87258-0: The 3.96mm pitch sets the board footprint — wide enough for easy routing of 5A per circuit without crowding traces.
The 0.500" mating pin length gives solid contact wipe with mating receptacles. Mates with AMPMODU Mod I crimp socket housings or IDC receptacles in the same series — confirm the mating half part number for your harness design.
