TE Connectivity AMP Connectors 1-87499-2 — Connector Housings

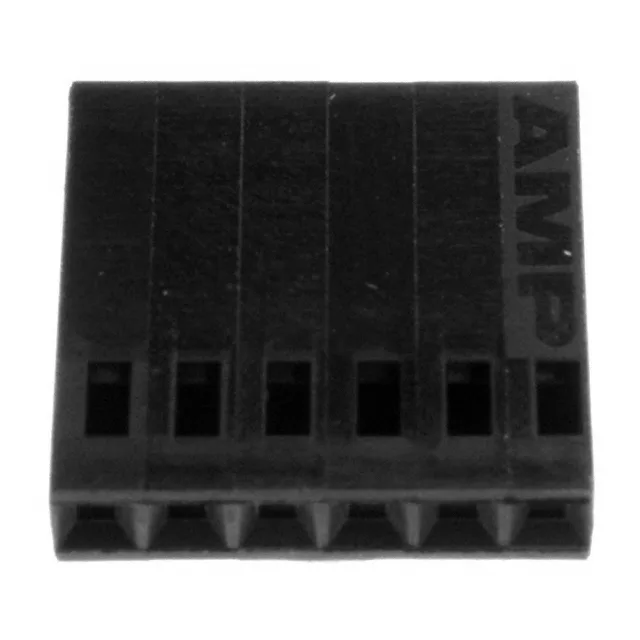

TE 1-87499-2 AMPMODU Mod IV 6-Pos Receptacle Housing, 2.54mm

MPN1-87499-2
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 1-87499-2, 6 positions, 1 row, 0.100" (2.54mm) pitch, free hanging (in-line), crimp termination, black thermoplastic, -65°C to 105°C.

$0.6100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-87499-2 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeMale or Female
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions6

Product details

6-Position Single-Row Receptacle Housing for AMPMODU Mod IV

The TE Connectivity 1-87499-2 is a 6-position single-row receptacle housing from the AMPMODU Mod IV series.

Crimp Contacts Ordered Separately

The 1-87499-2 is a housing only — contacts are not included. It accepts either male or female crimp terminals, so the same housing can serve as either a plug or receptacle body depending on which contact is loaded. The crimp termination requires a compatible hand tool or automatic press and the correct terminal part number for the wire gauge being used.

Frequently asked questions

What crimp contacts are compatible with 1-87499-2?

The 1-87499-2 accepts either male or female crimp terminals from the AMPMODU Mod IV contact family. The specific terminal part number depends on the wire gauge and plating requirement — consult the series application drawing for the correct fit.
