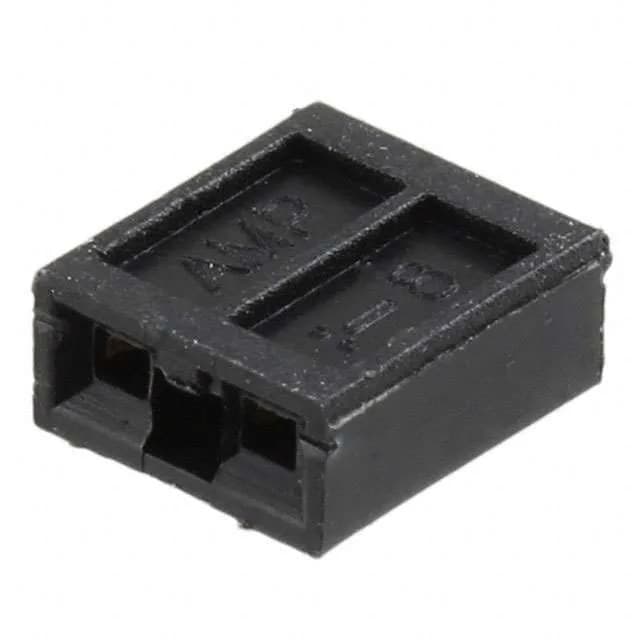

TE Connectivity AMP Connectors AMPMODU, Open Top Shunt, 2 (1 x 2) Positions, 0.100" (2.54mm) Pitch, Female Sockets, Gold Contact Finish, 3A Current Rating, UL94 V-0, Black Thermoplastic Housing
| Parameter | Value |
|---|---|
| Type | Open Top |
| Series | AMPMODU |
| Current rating | 3A |
| Color | Black |
| Height | 0.228\" (5.80mm) |
| Housing material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Gold |
| Contact finish thickness | 15.0µin (0.38µm) |
| Number of positions or pins | 2 (1 x 2) |
The 1-881545-1: The open-top design allows probing or daisy-chaining through the top of the shunt, useful for test points or configuration jumpers on a board.
Rated 3 A per contact, this shunt handles signal-level currents typical for configuration jumpers, address selection, or enable lines on logic boards.
ROHS3 Compliant, suitable for assemblies requiring RoHS exemption-free materials.
0.100" (2.54mm) pitch, matching the standard AMPMODU and BergStik II header grid.
Yes, it is ROHS3 Compliant.
