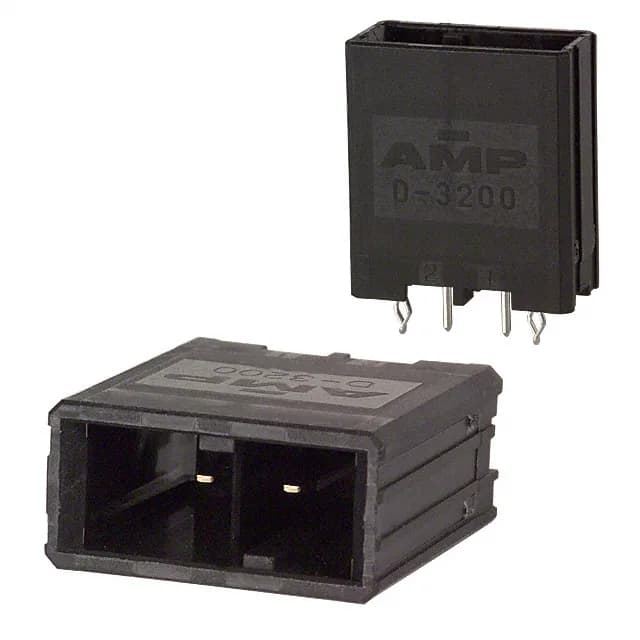

The 1-917337-2 is a 2-position, single-row header from TE's Dynamic D-3200 series, on a 5.08 mm pitch that suits power distribution or signal runs where you need more copper than a 2.54 mm part offers. Rated at 600 V and spanning -55°C to 105°C, it's built for industrial and general-purpose equipment where the environment isn't climate-controlled.
Gold mating finish and board lock for reliable assembly
The board lock is a metal anchor that keeps the header seated during solder and takes shear off the pins when the cable is yanked — a detail the harness builder appreciates.
This header mates with Dynamic D-3200 series receptacles (socket housings) on the same 5.08 mm pitch, single-row layout — the detent lock on the header engages the matching ramp on the receptacle. The mated stack height range is 31.00 mm to 32.50 mm, which sets the board-to-board or wire-to-board spacing in the assembly.
