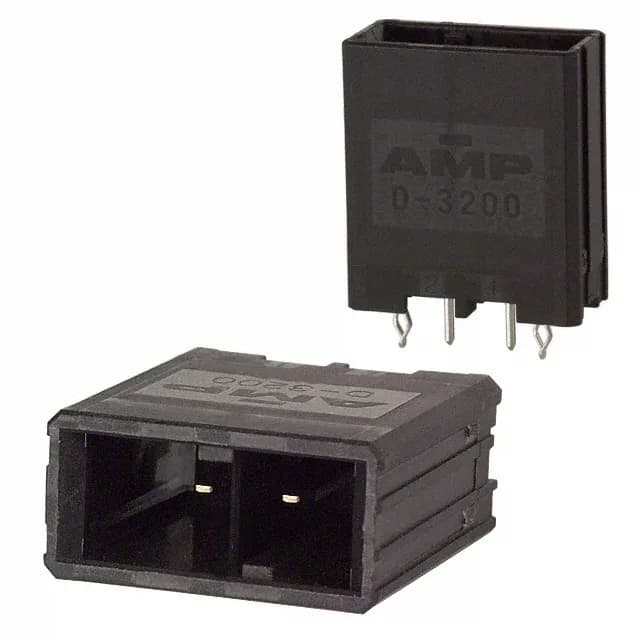

TE Connectivity AMP Dynamic D-3200 header, 1-917337-3, 2 positions, 5.08 mm pitch, shrouded 4-wall, through-hole, gold mating finish, board lock, 600 V, -55°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-917337-3 is a 2-position, single-row header from TE's Dynamic D-3200 series, pitched at 0.200" (5.08 mm) — wide enough to handle the 600 V rating without creepage worries on the board.
The mating pitch is 0.200" (5.08 mm), single row, 2 positions loaded.
Yes, it is shrouded on all four sides, with a detent lock for positive retention.
