TE Connectivity AMP Connectors 1-917337-5 — Pin Headers

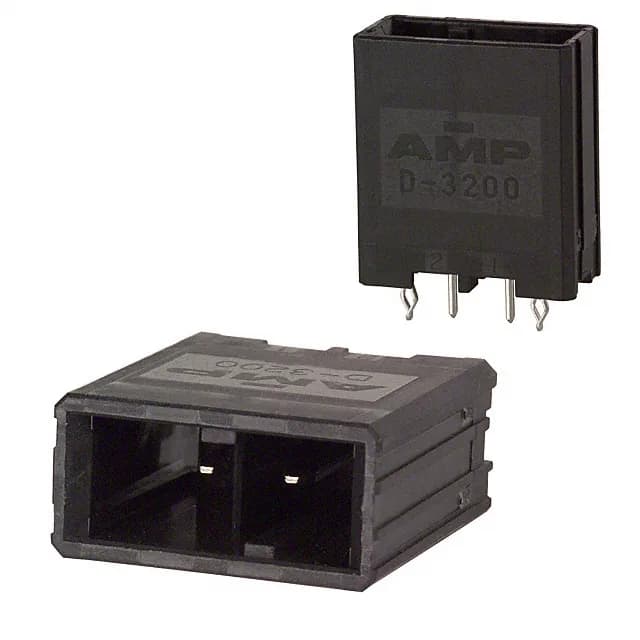

1-917337-5 TE Connectivity AMP Connectors Header 2 Pos

MPN1-917337-5
Active

TE Connectivity AMP Connectors, Dynamic D-3200 series, header, 2 positions, 0.200" (5.08mm) pitch, through-hole, shrouded - 4 wall, detent lock, tin contacts, UL94 V-0, -55°C ~ 105°C.

$1.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-917337-5 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

1-917337-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions2
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Two-position header with 5.08mm pitch and full shrouding

The 1-917337-5 is a 2-position, single-row header from TE's Dynamic D-3200 series, on a 0.200" (5.08mm) pitch. Rated 600V, with tin-on-tin contacts (78.7µin on the mating side) and a UL94 V-0 glass-filled polyester housing.

This header mates with Dynamic D-3200 series receptacles (cable or board-mount) on the same 5.08mm pitch. The mated stack height range is 31.00mm ~ 32.50mm, useful for planning clearance above the PCB. Through-hole termination with a 0.150" (3.81mm) post length suits standard 1.6mm PCBs.

Listed as Active with ROHS3 compliance. Sourced per RFQ against BOM quantities.

Frequently asked questions

Is 1-917337-5 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the current rating of 1-917337-5?

The evidence does not list a specific current rating. The 600V voltage rating and tin-plated contacts suggest a general-purpose signal or low-power duty; consult the Dynamic D-3200 series datasheet for derating curves.
