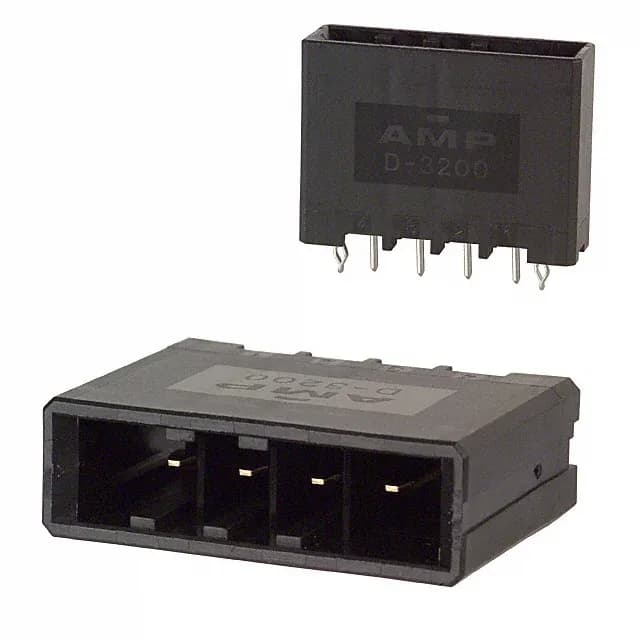

TE Connectivity AMP Connectors, Dynamic D-3200 series, header, 4 circuits, 5.08 mm pitch, shrouded 4-wall, detent lock, board lock, through-hole, gold-plated contacts, UL94 V-0, -55°C to 105°C, 600 V rating.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-917338-2 is a 4-position, single-row header on a 5.08 mm pitch — the wide pitch keeps routing simple on 2-layer boards and mates with standard Dynamic D-3200 receptacles. The shrouded 4-wall housing with detent lock centers the plug during blind mating and resists vibration-induced disconnect in industrial cabinets. Board lock features anchor the header through wave solder, preventing lift and adding shear resistance from cable strain.
The 1-917338-2 has 4 positions on a 5.08 mm pitch, single row.
Yes — it is a shrouded 4-wall header with a detent lock and includes a board lock for through-hole retention.
The 1-917338-2 mates with Dynamic D-3200 series receptacles. Confirm the circuit count and pitch match your receptacle before ordering.
Yes, the 1-917338-2 is ROHS3 compliant.
