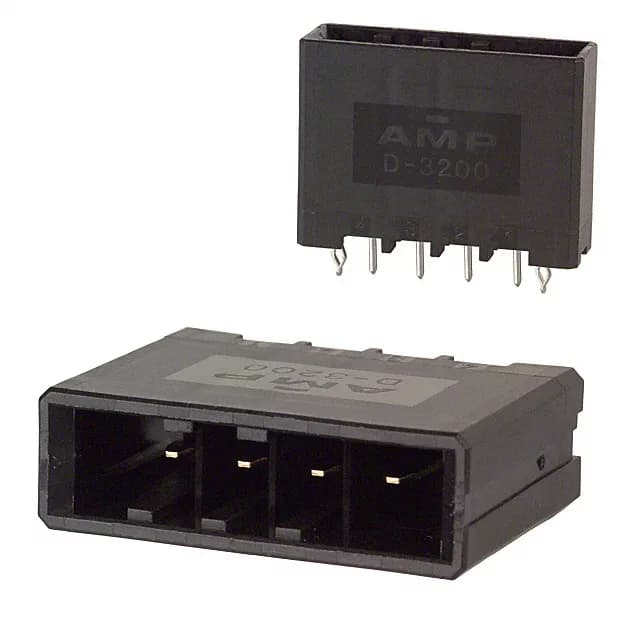

TE Connectivity AMP Dynamic D-3200 series, 1-917338-3, Board to Board or Cable header, 4 circuits, 5.08mm pitch, single row, shrouded - 4 wall, through hole solder, gold contact finish 30.0µin, board lock, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-917338-3: This is a single-row, 4-position header from TE's Dynamic D-3200 series, pitched at 0.200" (5.08mm).
Through-hole termination with a 0.150" (3.81mm) post length — typical for a 1.6mm PCB, but check your board thickness against the post length for full solder fillet.
