TE Dynamic D-3200 series, 1-917338-5, board-to-board or cable header, 4 positions, 5.08mm pitch, shrouded 4-wall, tin-plated contacts, board lock, 600V, UL94 V-0, through-hole solder termination, active production.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |

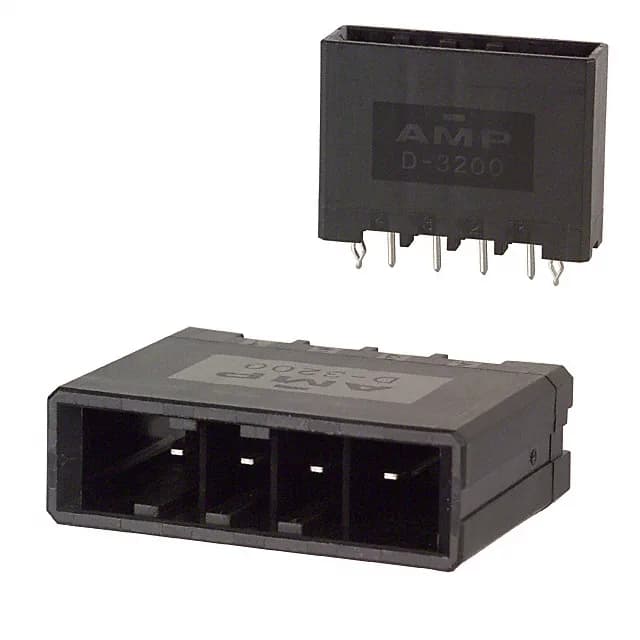

The 1-917338-5 is a 4-position, single-row header from TE's Dynamic D-3200 series, on a 5.08mm pitch. The tin-plated tab contacts suit moderate-cycle applications in industrial control, general-purpose power distribution, and equipment enclosures.
The 5.08mm pitch gives generous routing space for higher-voltage traces. Mated stacking height range of 31.00mm to 32.50mm sets the board-to-board spacing when paired with the matching Dynamic D-3200 receptacle.
It's ROHS3 compliant.
It mates with a Dynamic D-3200 series receptacle (female housing with crimp terminals). The 5.08mm pitch and detent lock are common across the series; confirm the receptacle's circuit count and orientation for your application.
