3-circuit power header with board lock
The 1-917389-3: It carries gold-plated mating contacts rated 600 V and mounts surface-mount right-angle with solder termination; the board lock secures the part during reflow and against vibration.

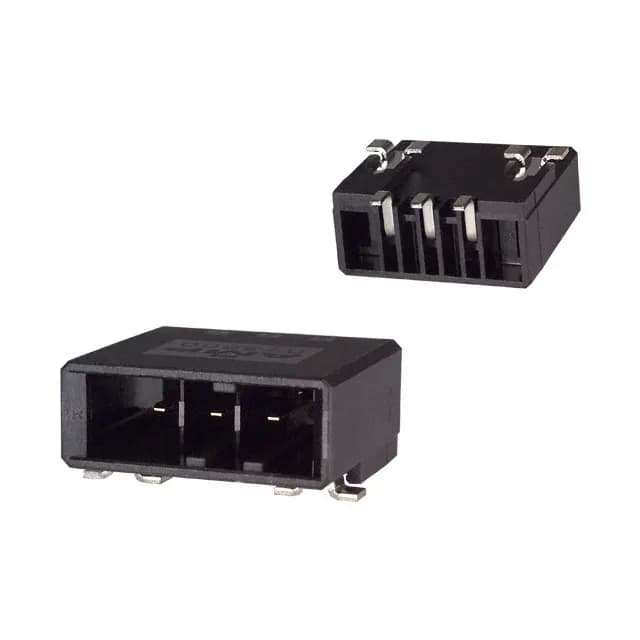

TE Dynamic D-3200 1-917389-3 Header, 3-Pos, 5.08mm
MPN1-917389-3
Obsolete
TE Connectivity AMP Connectors Dynamic D-3200 header, order code 1-917389-3, 3 positions, single row, 0.200" (5.08 mm) pitch, 600 V, gold-plated mating contacts, surface-mount right-angle, solder termination, board lock.
$0.9000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
