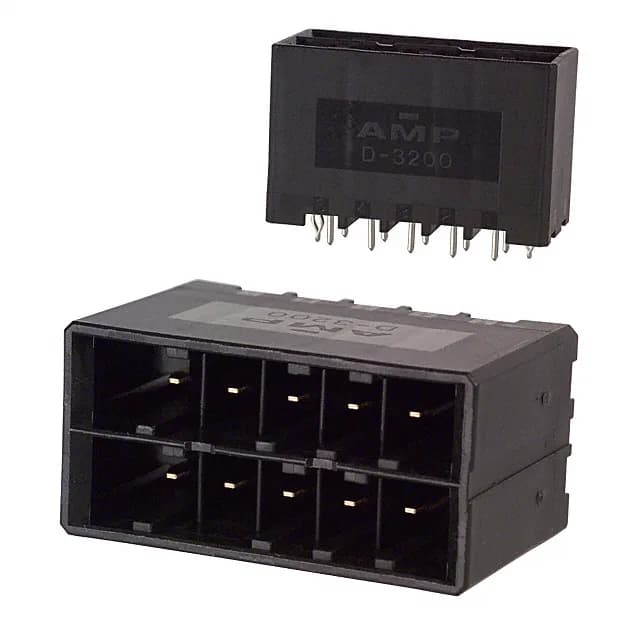

TE Connectivity AMP Connectors Dynamic D-3200 series header, 1-917657-2, 10 positions, 2 rows, 5.08mm pitch, shrouded 4-wall, gold mating finish, board lock, through-hole solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-917657-2 is a 10-position, 2-row header on a 5.08mm pitch, with a 7.62mm row spacing. The 0.200" pitch matches the standard Dynamic D-3200 receptacle footprint, so the board layout is a direct drop-in for any 10-circuit D-3200 mated pair.
For most industrial applications, 15.0µin gold is sufficient; the -3 is a step-up for higher-cycle or corrosive environments.
Yes, the 1-917657-2 is ROHS3 compliant.
The 1-917657-2 mates with a Dynamic D-3200 series receptacle (e.g., 1-917658-5 or similar) that uses the same 5.08mm pitch and 7.62mm row spacing. Confirm the receptacle part number for your specific wire gauge and locking feature.
It is a direct footprint and mating half replacement if higher gold thickness is required.
