Board-to-Board or Cable Power Header

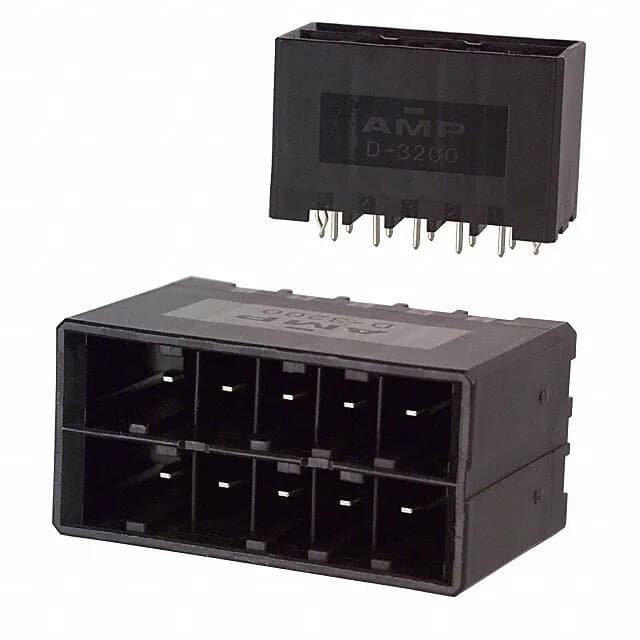

The 1-917657-5: The 5.08mm pitch and 7.62mm row spacing provide the clearance needed for higher-current circuits compared to signal-grade 2.54mm headers. A detent lock secures the mated pair against vibration-induced separation.
Board Lock and Through-Hole Mounting
Through-hole solder termination ensures a robust mechanical and electrical connection.
Mated Stack Height and Fit
When mated with the corresponding Dynamic D-3200 receptacle, the stack height ranges from 31.00mm to 32.50mm. This z-height budget must be confirmed in the enclosure design.
The base product number is 917657; the 1- prefix indicates a specific plating or packaging variant. No pin-compatible replacement is listed by TE — the 917657-5 base number is the same series, but verify the exact suffix for fit.
