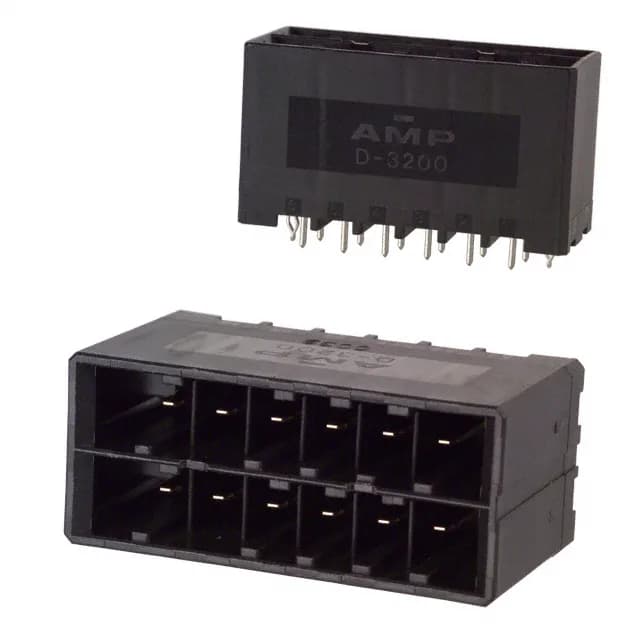

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 1-917658-2, 12 positions, dual row, 0.200" (5.08mm) pitch, 600 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 12 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-917658-2 is the 12-position member of TE's Dynamic D-3200 shrouded header line. It carries gold-plated mating contacts rated 600 V and mounts through-hole with solder termination.
Mated stacking heights span 31.00mm to 32.50mm.
