TE Connectivity AMP Connectors 1-925369-6 — Connector Housings

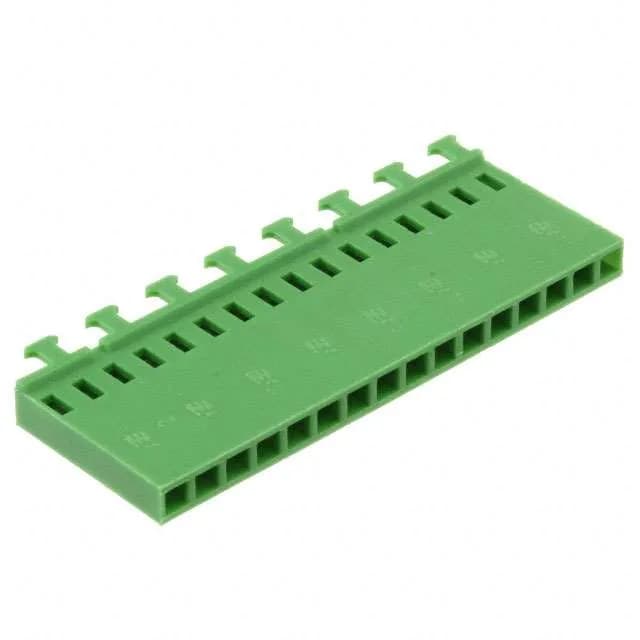

TE AMPMODU Mod IV 1-925369-6, 16 Pos Receptacle Housing

MPN1-925369-6
Active

TE Connectivity AMPMODU Mod IV receptacle housing, 1-925369-6, 16 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, free-hanging, green PA66, contacts not included.

$1.5800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-925369-6 specifications
ParameterValue
SeriesAMPMODU Mod IV
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorGreen
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions16

Product details

16-Position Free-Hanging Receptacle Housing for Crimp Terminals

What Mates and What Doesn't — Contacts Sold Separately

This housing mates with any AMPMODU Mod IV 0.100" pitch header — typically unshrouded breakaway headers or shrouded pin headers of matching 16 positions and single-row configuration. The 2.54mm pitch is the same as legacy 0.100" grid headers, so it also fits many generic pin strips as long as the pin diameter (0.64mm square typical for Mod IV) and row spacing align. Order the matching AMPMODU Mod IV female crimp socket terminals separately.

Frequently asked questions

Does 1-925369-6 include contacts?

No. The 1-925369-6 is a receptacle housing only — contacts are not included and must be ordered separately as AMPMODU Mod IV female crimp socket terminals.

What headers mate with 1-925369-6?

This housing mates with AMPMODU Mod IV 0.100" pitch headers — typically unshrouded breakaway or shrouded pin headers in 16 positions, single row. The 2.54mm pitch also fits many generic 0.100" pin strips with matching pin diameter.
