Lever Lock and Shrouded Housing for Vibration Duty

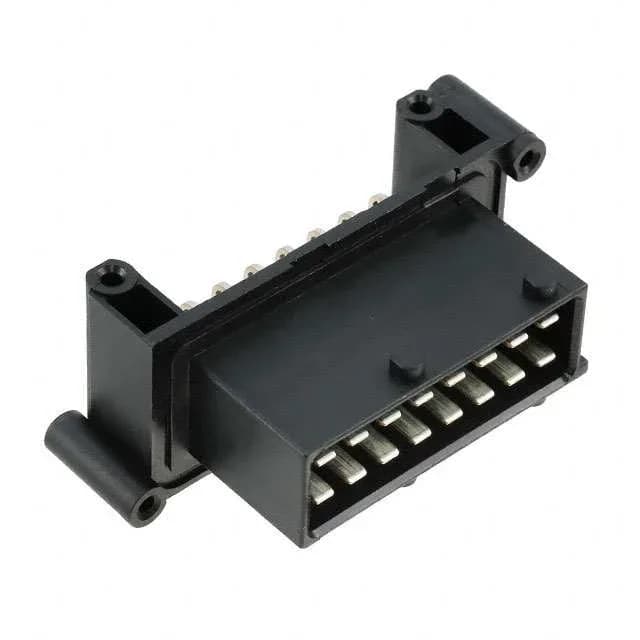

The 1-963215-1: The lever lock fastening type provides positive retention against vibration and shock — the lever engages with the mating receptacle and cannot be dislodged by cable pull or machine vibration.
RoHS compliant per the listed compliance status.
This plug header mates with Junior Power Timer receptacle housings that accept tab contacts — the mating half is a 16-position, dual-row receptacle with a corresponding lever-lock feature. Termination is solder to the PCB through the right-angle through-hole posts; the contact length after the post is 3.10 mm, suitable for standard PCB thicknesses. All 16 positions are loaded — no empty cavities to manage in the harness build.
