Right-angle through-hole, 42-way, lever-locked
The 1-963224-1 is the 42-position member of TE's Junior Power Timer plug line, a shrouded 4-wall header with a lever-lock fastening system for vibration-resistant mating.

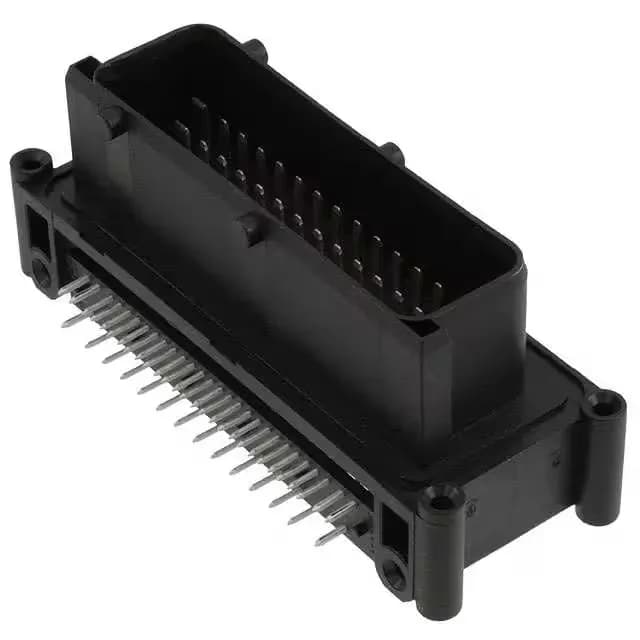

1-963224-1 TE Junior Power Timer Plug, 42 Pos, 5.00mm
MPN1-963224-1
Active
TE Connectivity AMP Connectors Junior Power Timer plug, order code 1-963224-1, 42 positions, 3 rows, 0.197" (5.00mm) pitch, tin-plated mating contacts, through-hole right-angle, solder termination, lever lock, tray.
$14.0800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug |
| Fastening type | Lever Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.280\" (32.50mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Mounting Flange |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 42 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
How is 1-963224-1 quoted for volume purchases?
The 1-963224-1 is an active part quoted to order against BOM quantity; availability is confirmed at RFQ.
