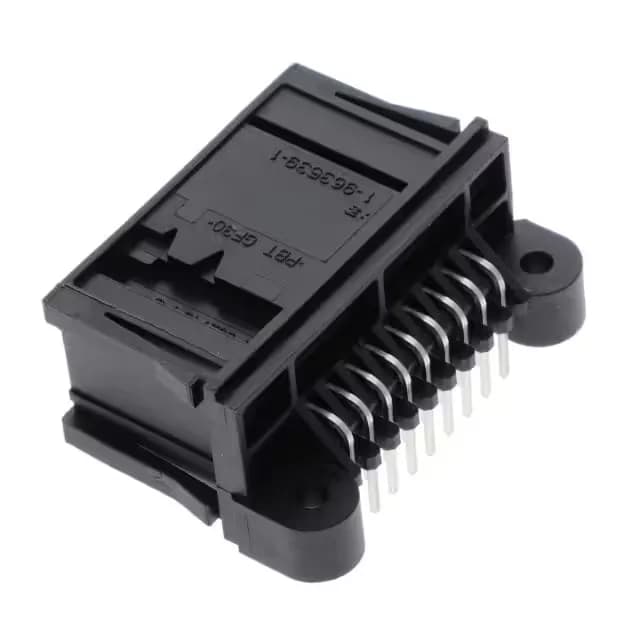

1-963539-2 TE Connectivity Micro Quadlok Header 18 Pos R/A

MPN1-963539-2
Active

TE Connectivity AMP Connectors Micro Quadlok header, 1-963539-2, 18 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 4-wall, latch lock, tin contacts, -40°C to 85°C, tray.

$2.5400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-963539-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro Quadlok
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-963539-2 key specifications
ParameterValue
SeriesMicro Quadlok
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock
Operating temperature-40°C ~ 85°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.669\" (17.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
StyleBoard to Cable/Wire
PackageTray

All specifications

1-963539-2 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingTin
Contact length - mating0.264\" (6.70mm)

Product details

Board-to-wire header for automotive and industrial harnesses

Pitch, position count, and temperature range

Row spacing is also 0.100" (2.54mm), so the board layout is a straightforward 18-hole pattern.

Comparison with peer 1379030-3

The 1379030-3 is a 12-position, 2-row header in the same Micro Quadlok family, also right-angle through-hole with 0.100" pitch. The key difference: 1-963539-2 uses a latch lock for retention; 1379030-3 uses a friction lock. The 18-position version gives you six more circuits per row for higher-density harness routing.

Frequently asked questions

What is the difference between 1-963539-2 and 1379030-3?

Both are Micro Quadlok right-angle headers with 0.100" pitch. The 1-963539-2 has 18 positions and a latch lock; the 1379030-3 has 12 positions and a friction lock. The 18-position version suits higher-density harness layouts.
