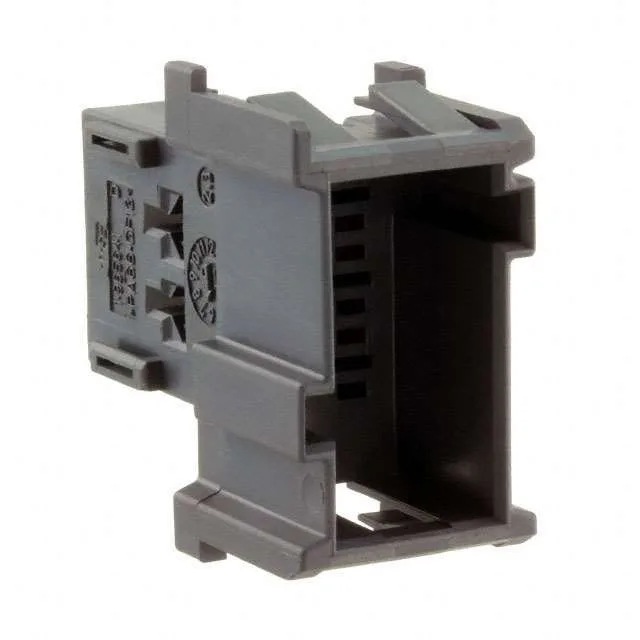

TE Connectivity Junior Power Timer plug housing, 6 positions, 3 rows, 0.197" (5.00mm) pitch, 0.217" (5.51mm) row spacing, free-hanging, crimp termination, gray PA66, -40°C to 120°C.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -40°C ~ 120°C |
| Color | Gray |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Row spacing | 0.217\" (5.51mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 6 |
The housing accepts the standard Junior Power Timer crimp contacts (tab type), which are sold individually and carry the per-circuit current rating for the series. The free-hanging (in-line) mounting style and crimp termination make this housing suitable for harness assembly where the connector is spliced into a cable bundle rather than mounted to a board.
Yes, the 1-965641-3 is RoHS compliant.
