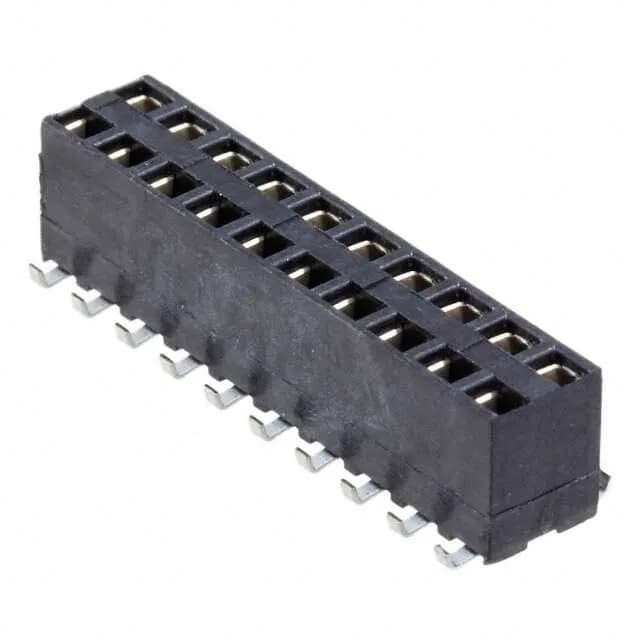

TE Connectivity AMPMODU HV-100 receptacle, order code 1-966645-0, 20 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, surface-mount, solder termination, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-966645-0: Gold-plated mating contacts on a copper-alloy base, with tin-plated solder tails, rated for the full 20-position complement.
The push-pull fastening type mates without a locking latch; the 0.244" (6.20 mm) insulation height sets the z-height clearance above the board.
No pin-compatible alternative is recorded in the AMPMODU HV-100 series for this part. The 20-position, dual-row, 0.100" pitch configuration is specific to this order code.
