Shrouded Header with Latch Holder
The 1-966658-2: Rated 12 V with tin-plated mating contacts, the header mounts through-hole and terminates by solder, with a board lock for retention during assembly.

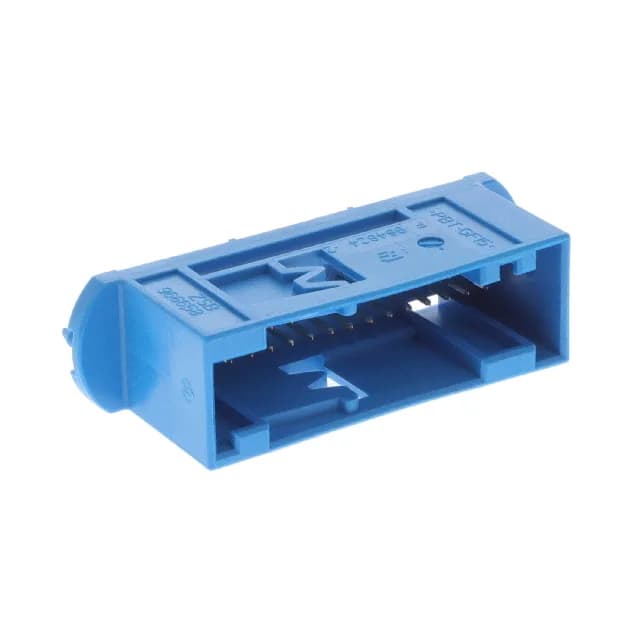

TE 1-966658-2 Header, 32 Pos, 2.54mm, Shrouded
MPN1-966658-2
Active
TE Connectivity AMPMODU Mod II header, order code 1-966658-2, 32 positions, dual row, 0.100" (2.54 mm) pitch, 12 V, tin-plated mating contacts, through-hole, solder termination.
$2.1400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12V |
| Operating temperature | -40°C ~ 110°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.795\" (20.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.268\" (6.80mm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
