TE Connectivity AMP Connectors 1-967242-1 — Connector Housings

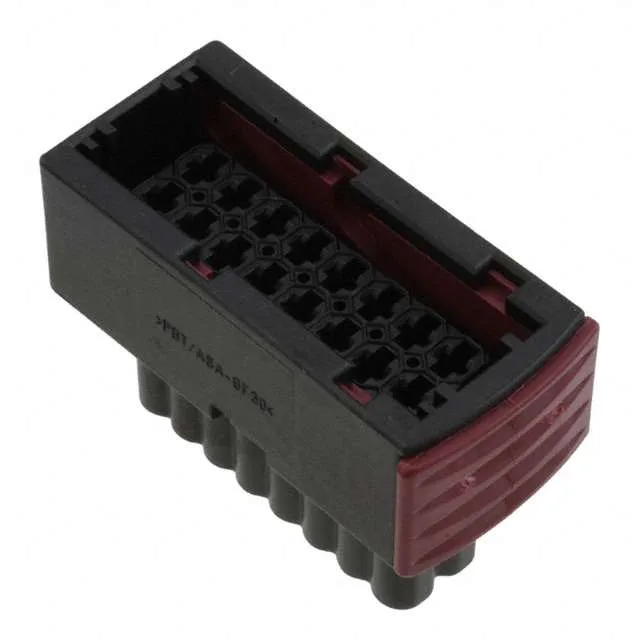

TE 1-967242-1 Junior Power Timer Receptacle Housing, 16 Pos

MPN1-967242-1
Active

TE Connectivity Junior Power Timer receptacle housing, 1-967242-1, 16 positions, 2 rows, 0.197" (5.00 mm) pitch, 0.236" (6.00 mm) row spacing, free-hanging (in-line), crimp termination, black PBT, contacts not included.

$4.1000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-967242-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesJunior Power Timer
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-967242-1 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.236\" (6.00mm)
Rows2
Contact terminationCrimp
Positions16

Product details

16-Position Dual-Row Inline Housing for Junior Power Timer

Crimp-Terminated Female Socket Housing — Contacts Ordered Separately

The crimp termination style means you select the wire-gauge-specific terminal for your harness build (typically 0.5 to 2.5 mm² for the Junior Power Timer range), then crimp and insert it into the cavity. The dual-row 16-position layout matches the mating male header (the corresponding Junior Power Timer plug housing) for a keyed, vibration-resistant connection. The free-hanging design lets you route the harness directly without a panel cutout, which is common in engine-bay and body-electronics harnesses.

Frequently asked questions

Where can I buy the TE 1-967242-1?

Submit a request for quote to confirm current availability and pricing — no stock-holding or lead-time figure is published here.

What contacts are compatible with the 1-967242-1?

The 1-967242-1 is a housing only — contacts are not included. It accepts female socket crimp terminals from the Junior Power Timer series; select the wire-gauge-specific terminal (typically 0.5–2.5 mm² range) for your harness build.

Does the 1-967242-1 include contacts?

No — the listing explicitly notes Contacts Not Included. The housing is ordered separately from the crimp terminals.

What is the pitch of the 1-967242-1?

The 1-967242-1 uses a 0.197" (5.00 mm) pitch between contacts and a 0.236" (6.00 mm) row spacing.
