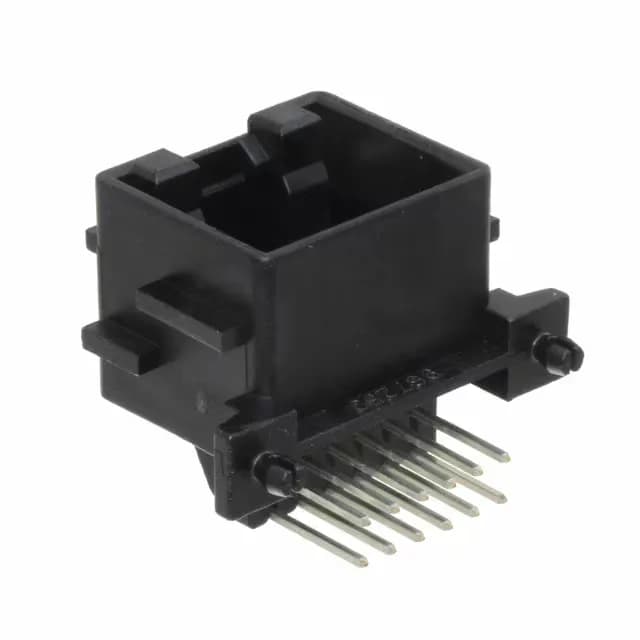

TE Connectivity AMP Connectors Micro Quadlok header, 1-967250-1, 12 circuits, 0.100" (2.54mm) pitch, through-hole right angle, shrouded 4-wall, friction lock, board lock, tin-plated contacts, -40°C~85°C, RoHS.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.772\" (19.60mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
The 1-967250-1: This 12-circuit header from the Micro Quadlok series mates with a corresponding cable receptacle to create a board-to-wire connection in automotive and industrial applications.
Tin contacts are rated for approximately 50-100 mating cycles, which suits field-service intervals in automotive interior or industrial control panels.
Yes, 1-967250-1 is RoHS compliant per the current directive.
This header mates with a Micro Quadlok cable receptacle (e.g., TE part number 1-967250-1 is the header; the mating receptacle is typically a 12-position housing with crimp terminals). Confirm the specific receptacle part number from the series catalog for your wire gauge and seal requirements.
