2-Position Sealed Housing for Power Harnesses

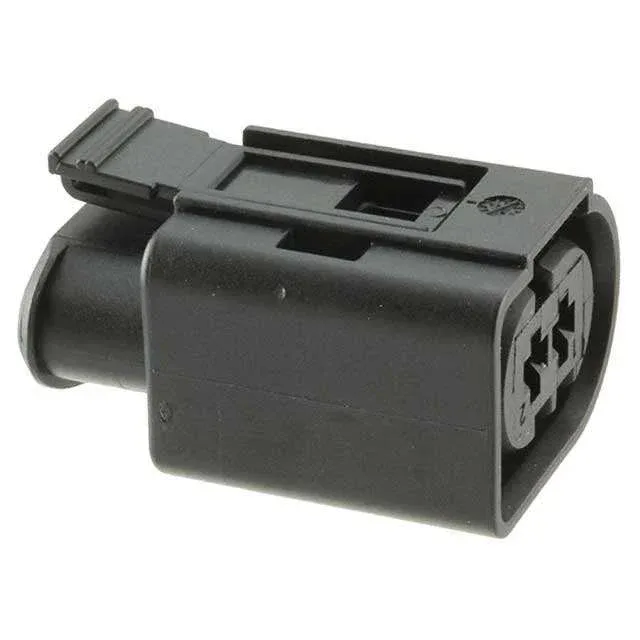

The TE Connectivity 1-967412-2 is a 2-position receptacle housing from the Junior Power Timer series, designed for wire-to-wire power interconnects in automotive and industrial environments. This is a bare housing — contacts are not included and must be ordered separately as crimp terminals. The 5.00 mm pitch provides generous spacing for power wiring, giving enough creepage for 12V/24V automotive systems and room for larger-gauge wire entry. The housing is sealed, making it suitable for wet or splash-prone locations such as underhood engine compartments, lighting harnesses, or industrial washdown areas.
The 5.00 mm pitch is the defining board-layout dimension if this housing mates with a through-hole header — it sets the contact spacing on the PCB footprint. For a harness builder, the pitch determines the minimum bend radius for parallel wire routing. The sealed feature means the housing has integral gaskets or sealing geometry that, when mated with the corresponding header and properly terminated, keeps moisture and dust out of the contact interface. This is not a waterproof connector by itself — the seal is effective only when the mating half and terminals are correctly assembled.
Mating and Termination — What Completes the Connection
This is a free-hanging (in-line) receptacle housing that accepts female socket crimp terminals. The contacts are ordered separately — the housing alone does not include them. The crimp termination style means the installer strips the wire, crimps the terminal, and inserts it into the housing cavity until the locking ramp seats. For a complete mated pair, this receptacle mates with the corresponding Junior Power Timer header (male pin side). The single-row, 2-position layout keeps the assembly compact for point-to-point power runs.
