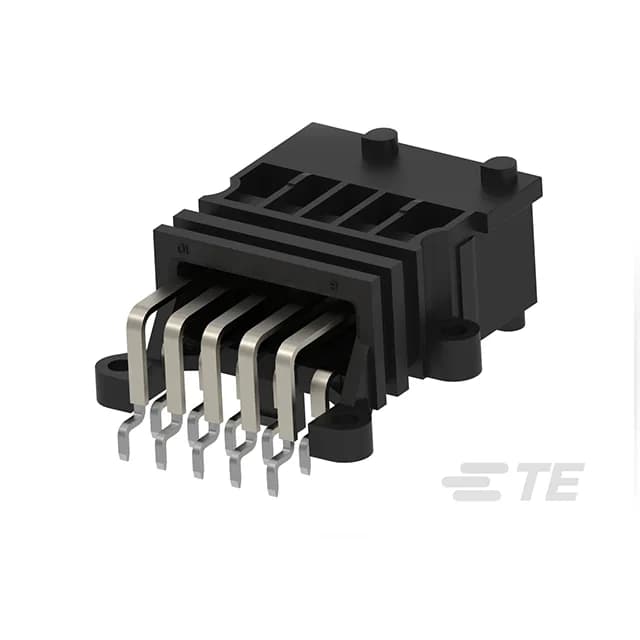

TE Connectivity AMP Connectors Junior Power Timer, Plug, Through Hole, Right Angle, 10 Positions, 5.00 mm Pitch, Shrouded - 4 Wall, Lever Lock, Tin Mating Contact Finish
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug |
| Fastening type | Lever Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 5.00 mm pitch and 6.00 mm row spacing give it a broad footprint suited for power distribution or signal routing in tight enclosures.
The 5.00 mm pitch on the mating interface and 6.00 mm row spacing set the PCB hole pattern. The mounting flange adds two extra through-hole anchors for shear resistance from the cable load.
The mating pitch is 5.00 mm (0.197 inches), with a row spacing of 6.00 mm (0.236 inches).
Yes, it is listed for automotive and general-purpose applications. The lever lock and shrouded housing are suited to the vibration environment typical in vehicle wiring.
Yes, it uses a lever lock fastening type that positively retains the mated connector pair and resists vibration-induced separation.
The header mates with the matching Junior Power Timer receptacle housing. Confirm the receptacle's circuit count and pitch match the 10-position, 5.00 mm layout before ordering.
