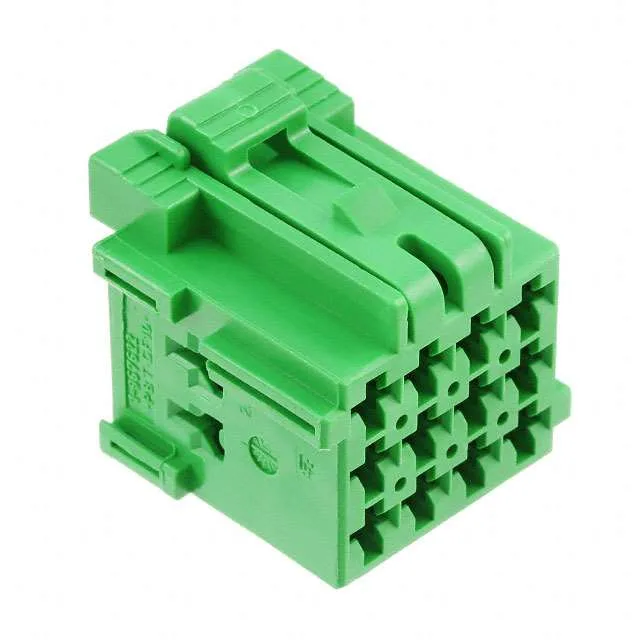

12-Position Junior Power Timer Receptacle Housing
It carries 12 female socket cavities arranged in 3 rows on a 5.00mm pitch with a 5.51mm row spacing, giving enough room between circuits for the current-carrying terminals this series is built around. The green PBT (polybutylene terephthalate, glass-filled) body gives it a visual identifier in multi-connector harnesses and handles underhood temperatures from -30°C to 100°C.
What the 5.00mm Pitch and 3-Row Layout Mean for Your Harness
The 3-row, 12-position arrangement packs 12 circuits into a narrower connector face than a single- or dual-row layout would, which helps when routing multiple wires through a tight grommet or into a confined junction box. The 5.51mm row spacing keeps adequate creepage between rows for the voltage levels this series handles in automotive and industrial applications.
The female socket contacts for this series are ordered separately under the Junior Power Timer terminal family. The housing accepts the standard Junior Power Timer crimp terminals, which are available in tin or silver plating depending on the current and temperature requirements of the application. Wire gauge compatibility depends on the specific terminal chosen, typically covering 0.5 to 2.5 mm² (20-14 AWG) for the power circuits this connector is designed for.
