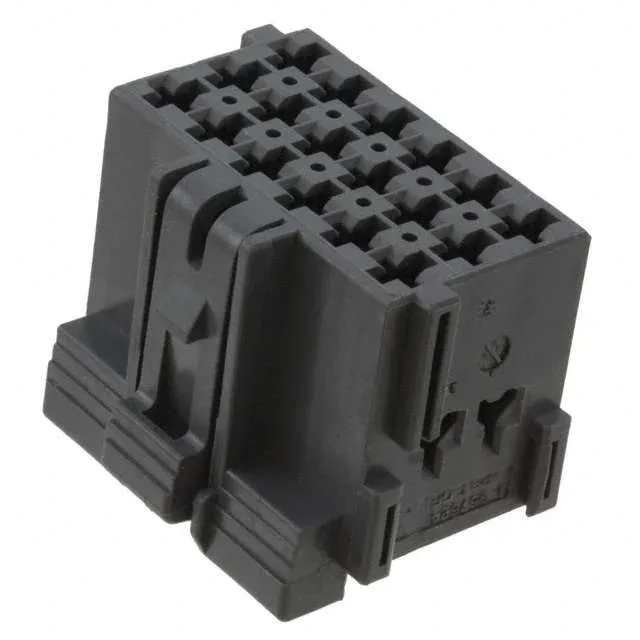

Housing for a 3-Row Power Harness
Wiring the Housing — Contacts Ordered Separately
The 3-row, 18-position layout means the harness builder needs to confirm the correct terminal part number for the wire gauge being used; TE's Junior Power Timer terminal family covers a range of wire sizes. The latch holder locks the housing to the mating plug header, and the glass-filled PBT insulation material holds up to the temperature cycling seen in engine bay or industrial cabinet environments.
The 18-position count and 3-row layout are common for power distribution junctions in automotive body harnesses, industrial control panels, and off-highway equipment.
