TE Connectivity AMP Connectors 1-967624-3 — Connector Housings

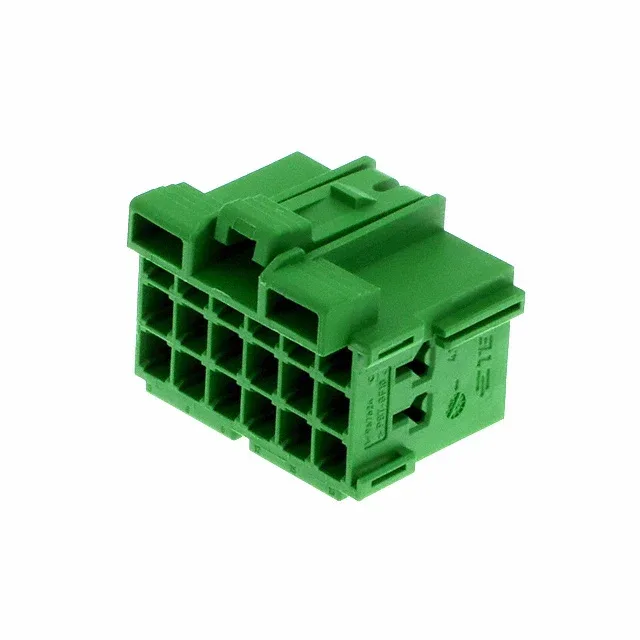

TE Junior Power Timer 1-967624-3, 18 Pos Receptacle Housing

MPN1-967624-3
Active

TE Connectivity Junior Power Timer receptacle housing, 1-967624-3, 18 positions, 5.00mm pitch, 3 rows, 5.51mm row spacing, free-hanging, crimp termination, green PBT housing, latch holder retention.

$1.7200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesJunior Power Timer
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-967624-3 specifications
ParameterValue
SeriesJunior Power Timer
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-30°C ~ 100°C
ColorGreen
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.217\" (5.51mm)
Rows3
Contact terminationCrimp
Positions18

Product details

18-Way Power Receptacle for Harness Builds

Rated for -30°C to 100°C operation, it handles underhood temperatures and industrial cabinet environments without issue.

Order the matching Junior Power Timer female socket crimp terminals separately.

The latch holder on the receptacle side engages with the matching ramp on the plug for a secure, vibration-resistant lock. The series uses standard TE Junior Power Timer terminals and cavity layouts, so the plug side is a direct mate as long as the position count and row arrangement match.

Frequently asked questions

Does 1-967624-3 include contacts?

No. The 1-967624-3 housing ships without contacts — the listing explicitly states Contacts Not Included. You must order the matching Junior Power Timer female socket crimp terminals separately for your wire gauge.

What is the mating connector for 1-967624-3?

The 1-967624-3 receptacle mates with the corresponding 18-position, 3-row, 5.00 mm pitch Junior Power Timer plug housing. The latch holder on this receptacle engages with the matching ramp on the plug side for a vibration-resistant lock.
