21-Circuit Junior Power Timer Receptacle Housing

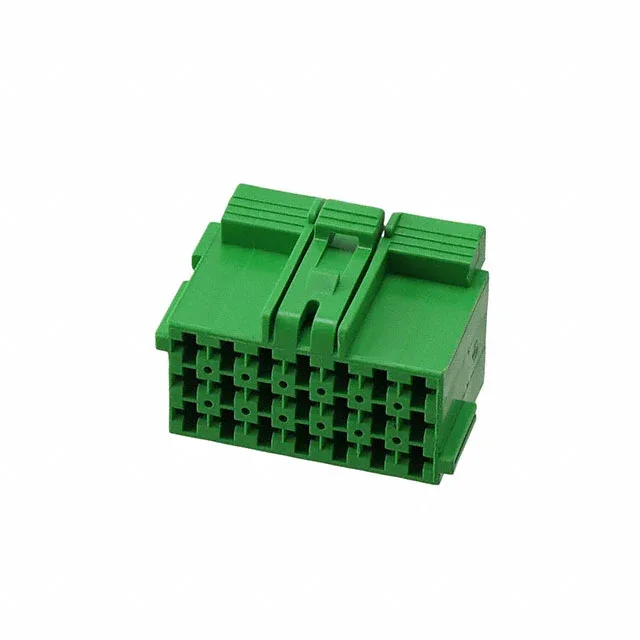

The TE Connectivity 1-967625-4 is a 21-position receptacle housing from the Junior Power Timer series, designed for free-hanging (in-line) wire-to-wire or wire-to-device interconnects in automotive and industrial harnesses. The housing accepts female socket crimp terminals and is keyed with a latch holder for secure mating. The green colour aids visual identification on the assembly line. Contacts are not included — order the matching crimp terminals separately.
Pitch and Row Spacing for Harness Layout
The 0.197" (5.00 mm) pitch and 0.217" (5.51 mm) row spacing give this housing enough room for power-level terminals without crowding the cavity layout. The 3-row, 21-position arrangement fits a 7-per-row pattern, common in multi-circuit power distribution junctions.
Termination and Mating
This is a crimp-termination housing — the female socket contacts are inserted into the cavities after crimping onto the wire. The latch holder fastening type provides a positive lock against vibration-induced separation. The housing mates with the corresponding Junior Power Timer plug header (male pin side).
