TE Connectivity AMP Connectors 1-967629-3 — Connector Housings

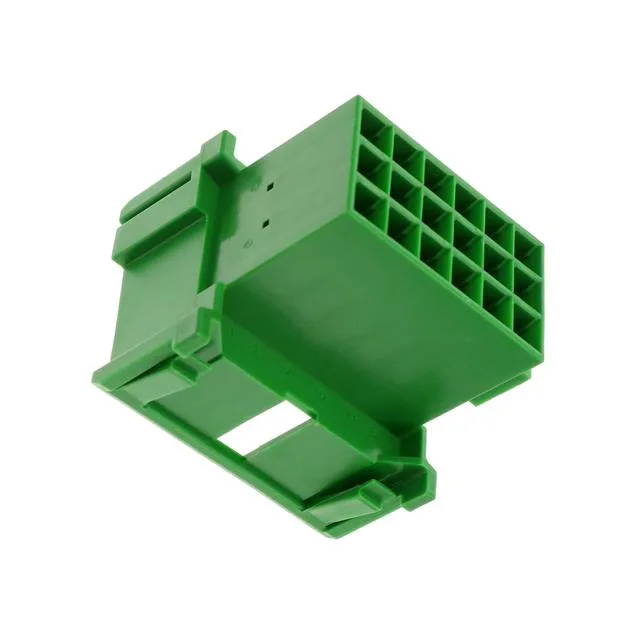

TE Connectivity 1-967629-3 Junior Power Timer Plug Housing

MPN1-967629-3
Active

TE Connectivity Junior Power Timer, Plug Housing, 18 Positions, 5.00mm Pitch, 3 Rows, Free Hanging, Crimp Termination, Green, Bulk.

$1.8600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJunior Power Timer
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-967629-3 specifications
ParameterValue
SeriesJunior Power Timer
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Operating temperature-40°C ~ 120°C
ColorGreen
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.217\" (5.51mm)
Rows3
Contact terminationCrimp
Positions18

Product details

The 18 circuits match the BOM line count for a 3x6 arrangement; if your harness needs 21 positions, the sibling 1-967630-5 (yellow housing, same pitch and row spacing) is a direct swap in the same series.

Housing Color and Keying

The green housing of the 1-967629-3 serves as a visual key in multi-connector harness assemblies — the same 18-position layout is also available in yellow (1-967629-4). Colour differentiation prevents mis-mating on the line when several identical-position plugs sit in the same harness bundle.

The housing accepts the matching Junior Power Timer receptacle (sold separately) and uses a primary latch for audible lock confirmation.

Frequently asked questions

Does the 1-967629-3 come with contacts?

No, the 1-967629-3 is a plug housing only — contacts are not included and must be ordered separately as crimp terminals for the appropriate wire gauge.
