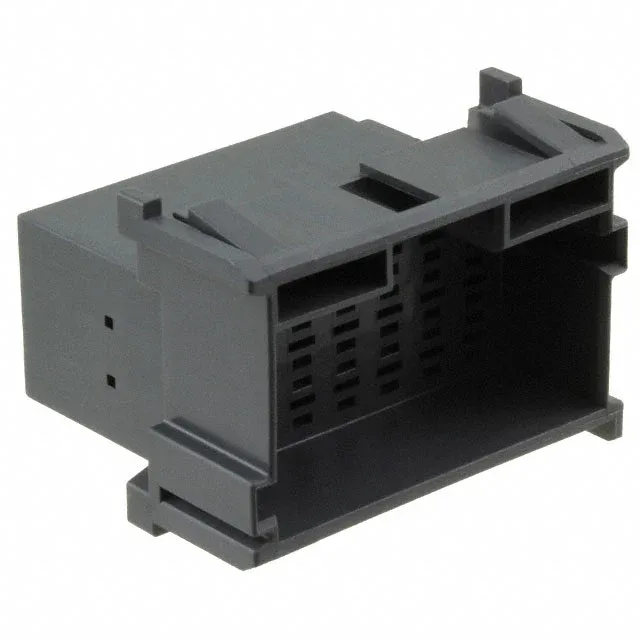

21-Position Plug Housing for Junior Power Timer Harnesses
The TE Connectivity 1-967630-2 is a 21-position plug housing from the Junior Power Timer series, a wire-to-wire and wire-to-board interconnect family designed for automotive and industrial power distribution. The housing accepts tab-style crimp contacts and is rated for a -40°C to 120°C operating range, matching the thermal demands of engine compartments and sealed enclosure environments. The 5.00 mm pitch and three-row layout with 5.51 mm row spacing give this housing a compact but serviceable footprint for a 21-circuit harness.
What to Order: Contacts Are Separate
The 1-967630-2 uses tab-style crimp terminals that must be ordered separately and inserted into the cavities. The housing is free-hanging (in-line) with no mounting features, intended to mate with a matching Junior Power Timer header or receptacle. The gray PA66 glass-filled insulation material provides the mechanical strength and flame resistance needed for under-hood and industrial control cabinet use.
