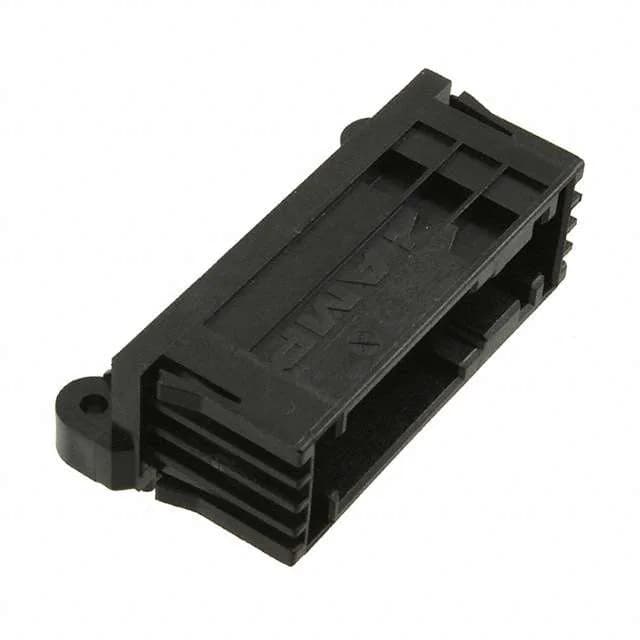

TE Connectivity AMP Micro Quadlok header, 1-968720-2, board-to-cable/wire style, 32 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 4-wall, latch lock, tin contacts, -40°C to 85°C, tray.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Insulation height | 0.669\" (17.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Mounting Flange |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
With 32 positions fully loaded across two rows and a row spacing of 0.100" (2.54mm), this header accepts a 32-circuit wire harness.
