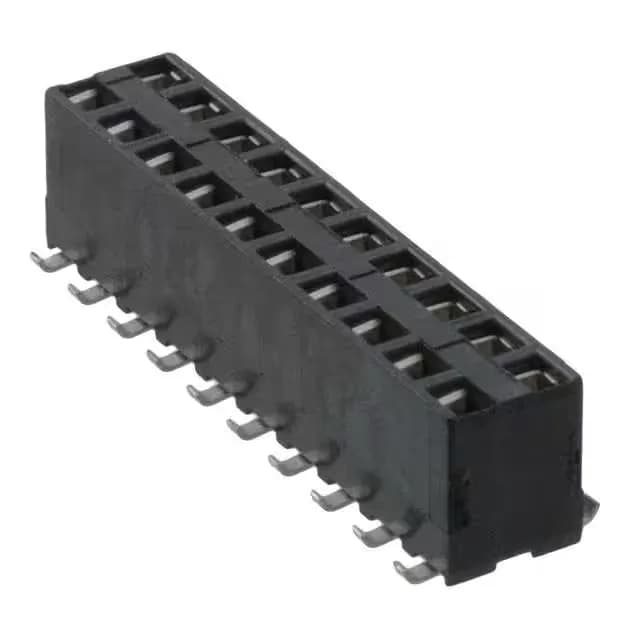

TE Connectivity AMP Connectors AMPMODU HV-100, 20-position dual-row receptacle, 0.100" (2.54 mm) pitch, SMT, gold mating finish, 31.5 µinch, bottom or top entry, black LCP housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-969973-0: The tin post finish (98.4 µinch) handles the solder joint without wicking issues during reflow.
In a high-vibration environment, you'd want a locking header; this is better suited for low-vibration mezzanine stacks where the board-to-board screws take the shear load.
Confirm the mating header's post length and orientation — this receptacle accepts bottom or top entry, so the header can approach from either side of the board.
