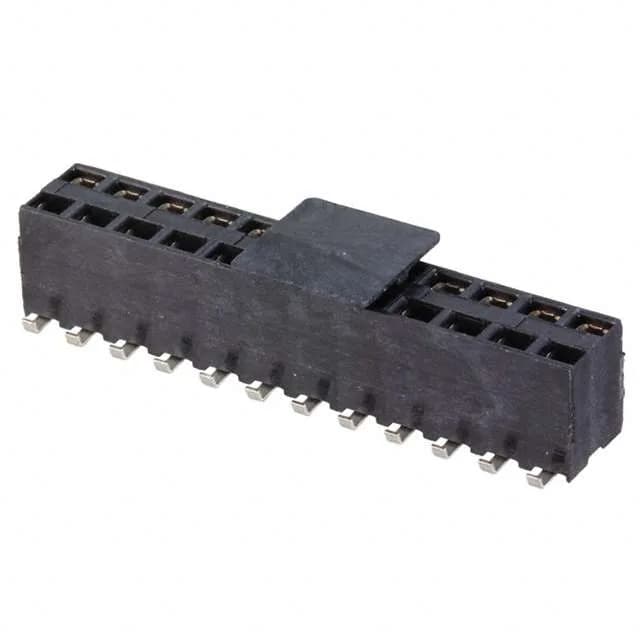

TE Connectivity AMP Connectors AMPMODU HV-100 series, 1-969973-2, female socket receptacle, 24 positions, 0.100" (2.54 mm) pitch, dual-row, surface mount, gold mating finish, black LCP housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-969973-2: The surface-mount termination and push-pull fastening suit it for parallel PCB stacking where the mating header is soldered on the opposite board.
The 0.100-inch pitch and 0.100-inch row spacing match the standard AMPMODU HV-100 header footprint. With 24 positions loaded across two rows, the board footprint is 12 positions per row, spanning 1.200 inches (30.48 mm) along the length.
Surface mount, 24 positions in two rows, all positions loaded. The pitch is 0.100 inch (2.54 mm) with 0.100-inch row spacing.
