TE Connectivity AMP Connectors 102153-2 — Pin Headers

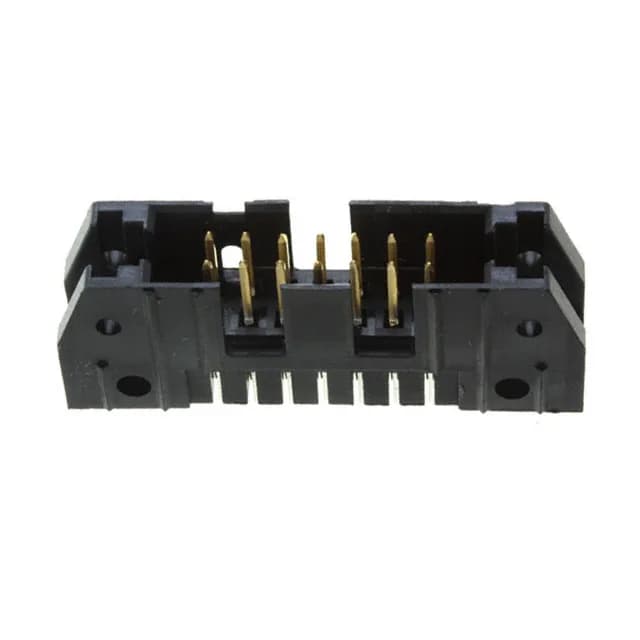

TE 102153-2 AMP-Latch Header 14 Pos 2.54mm Pitch

MPN102153-2
Active

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 14 Positions, 2.54mm Mating Pitch, Shrouded - 4 Wall, Through Hole, Solder Termination, Tray

$1.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 102153-2 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

102153-2 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

102153-2 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

14-Circuit Shrouded Header for Ribbon-Cable Interconnects

The 102153-2: The shrouded four-wall design guards the male pins against damage during mating — a practical choice when the cable assembly gets field-serviced or swapped out repeatedly.

This header mates with the standard AMP-Latch IDC socket (14-position, 2.54 mm pitch) commonly used for 0.050" ribbon cable. The mounting flange adds mechanical retention to the PCB if the application needs it.

Compliance Note

RoHS non-compliant per TE's listing — the post finish is tin-lead (100.0 µin), and the mating finish may contain gold-palladium. If RoHS exemption is required, confirm with your compliance team before committing the BOM line.

Frequently asked questions

What is the mating connector for the 102153-2?

The 102153-2 mates with an AMP-Latch IDC socket, 14-position, 0.100" pitch, designed for 0.050" ribbon cable. The shrouded four-wall header aligns the socket without keying, and the push-pull retention holds the pair together in a stationary enclosure.

Is the 102153-2 RoHS compliant?

No, the 102153-2 is listed as RoHS non-compliant. The post finish is tin-lead (100.0 µin), and the mating finish may contain gold-palladium. Verify your application's exemption status before ordering.
