TE Connectivity AMP Connectors 102153-3 — Pin Headers

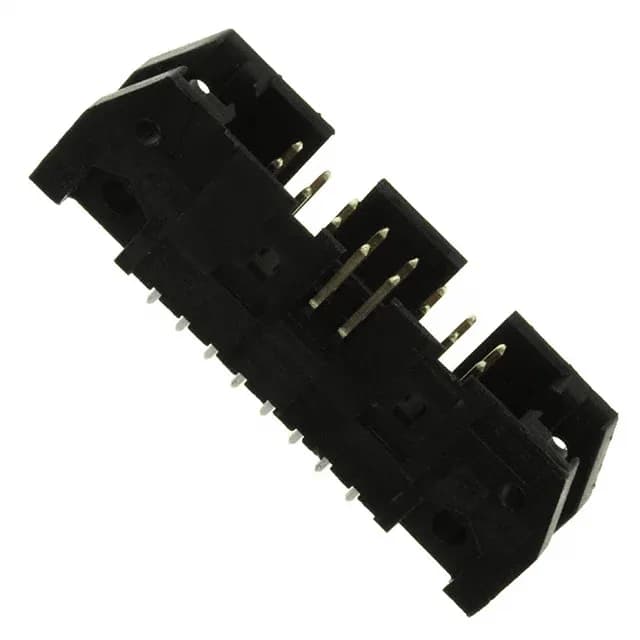

102153-3 TE AMP-Latch Header 16 Pos 2.54mm Through Hole

MPN102153-3
Active

TE Connectivity AMP-Latch 102153-3, 16-position, 2.54mm pitch, shrouded, through-hole header, male pin, gold mating finish, board-to-cable/wire style.

$2.8800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102153-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-55°C~105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

102153-3 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

16 Circuits at 2.54mm Pitch — BOM Fit Check

Shrouded Housing and Mounting Flange

The push-pull fastening type and the flange provide mechanical retention against cable strain — the flange bolts to the board or panel, not just the solder joints.

Mating Half and Series Position

This header mates with the AMP-Latch IDC socket family — the 16-position, 2.54mm pitch receptacle with the same keying. The shrouded 4-wall design prevents mis-mating with non-keyed connectors.

Sourced through independent distribution channels.

Frequently asked questions

Is 102153-3 RoHS compliant?

No — 102153-3 is RoHS non-compliant. The contact post finish is tin-lead. Verify your assembly's RoHS exemption or waiver before ordering.

What connector mates with 102153-3?

The mating half is a 16-position, 2.54mm pitch AMP-Latch IDC receptacle. The shrouded 4-wall header keys with the matching socket — confirm the position count and pitch match your harness assembly.
