TE Connectivity AMP Connectors 102153-4 — Pin Headers

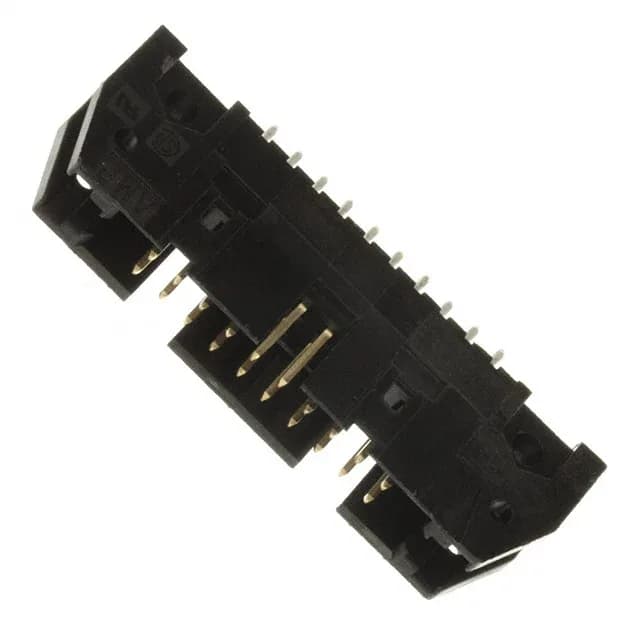

102153-4 TE Connectivity AMP-Latch Header 20 Pos 2.54mm

MPN102153-4
Active

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 20 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, 1A per Contact

$3.0700Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102153-4 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

102153-4 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20-Position Dual-Row Shrouded Header for IDC Ribbon Cable

The 102153-4 is a 20-position, dual-row header from the TE Connectivity AMP-Latch series, designed for board-to-cable/wire connections — typically mated with an IDC socket on a ribbon cable.

Through-Hole Termination and Contact Plating

Termination is through-hole solder, with a post length of 0.110" (2.79mm) — a standard length for single- or double-sided boards.

Current Rating and Temperature Range

Rated at 1 A per contact, this header is suited for signal-level currents — not for power distribution.

Sourcing and Lifecycle Status

It is supplied in tray packaging.

Frequently asked questions

Is 102153-4 a shrouded header?

Yes, it is a shrouded - 4 wall header, meaning the pins are fully enclosed by the housing on all four sides. This protects the pins during handling and guides the mating connector into alignment.
