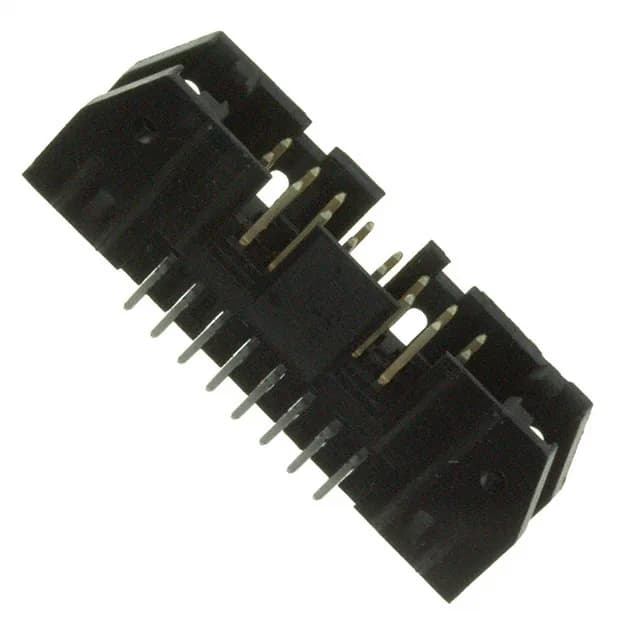

TE Connectivity AMP-Latch shrouded header, 102155-3, 16 positions dual-row, 0.100" (2.54 mm) pitch, through-hole solder termination, male pin contacts with gold or gold-palladium mating finish, rated 1 A per contact at 250 VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 102155-3: It mates with standard AMP-Latch IDC receptacles and ribbon cable connectors — the keying slot and mounting flange prevent mis-mating and provide mechanical retention to the board.
The tin-lead post finish is compatible with standard leaded solder processes.
Yes, this header is part of the AMP-Latch series and mates with standard AMP-Latch IDC receptacles and ribbon cable connectors. The 0.100-inch pitch and 16-position dual-row layout match the corresponding receptacle.
This is a signal-level header — not intended for power distribution above that per-contact ceiling.
