TE Connectivity AMP Connectors 102156-1 — Pin Headers

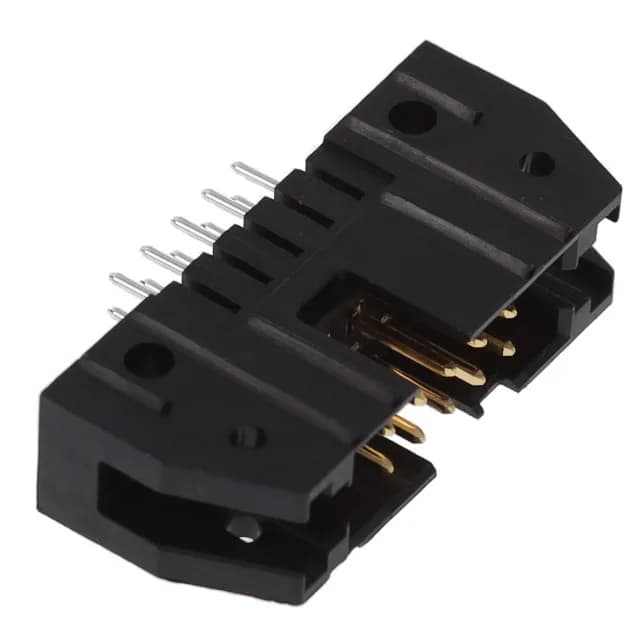

102156-1 TE Connectivity AMP-Latch Header 10POS 2.54mm

MPN102156-1
Active

TE Connectivity AMP-Latch 102156-1, Board to Cable/Wire header, 10 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded - 4 wall, through hole solder termination, male pin, gold or gold-palladium mating finish, 1A per contact, 250VAC, UL94 V-0.

$2.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 102156-1 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102156-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

102156-1 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.155\" (3.94mm)
Overall contact length0.684\" (17.37mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-cable header for AMP-Latch ribbon cable

Pitch and footprint for board layout

Mating pitch and row spacing are both 0.100 inch (2.54 mm), matching the standard grid of AMP-Latch IDC connectors and perf-board layouts. The 0.155-inch (3.94 mm) post length suits standard 1.6 mm PCBs. Compared to the 26-position sibling 102156-6, this 10-position version occupies less board edge real estate while sharing the same 0.100-inch pitch, 1 A rating, and gold mating finish. The choice between them is driven by the number of signals in the ribbon cable.

Frequently asked questions

Where can I buy TE Connectivity 102156-1?

Submit an RFQ for current pricing and lead time.

Is 102156-1 RoHS compliant?

No, it is RoHS non-compliant because the contact post finish is tin-lead (100 µin).

What is the mating connector for 102156-1?

It mates with AMP-Latch IDC ribbon-cable sockets having 0.100-inch pitch, 10 positions, dual-row configuration. The shrouded four-wall housing accepts a standard push-pull latch.

What is the closest functional alternative to 102156-1?

The 102156-6 is the same series with 26 positions instead of 10, sharing the same pitch, current rating, and gold mating finish. The 102154-1 is a 10-position variant with a shorter overall contact length (0.639 inch vs 0.684 inch).
