TE Connectivity AMP Connectors 102156-8 — Pin Headers, Sockets & Housings

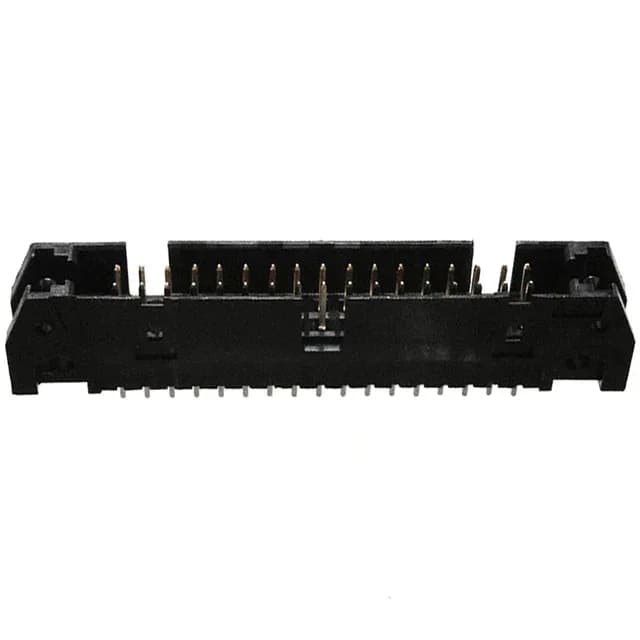

102156-8 TE AMP-Latch Header, 34 Pos, 0.100" Pitch, Gold

MPN102156-8
Active

TE Connectivity AMP-Latch shrouded header, 34 positions, 0.100" (2.54 mm) pitch, 2 rows, through-hole solder termination, gold or gold-palladium mating finish, 1 A per contact, 250 VAC, UL94 V-0 housing.

$4.0520Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 102156-8 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

102156-8 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

102156-8 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions34
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.155\" (3.94mm)
Overall contact length0.684\" (17.37mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.100" Pitch, 34-Position Shrouded Header — Board-to-Cable Signal Interconnect

The push-pull fastening type with keying slot and mounting flange ensures correct orientation and secure board retention.

Through-Hole Termination and Board-Mounting Details

The mounting flange provides mechanical stability during cable insertion and extraction. The square male pin shape mates with standard AMP-Latch IDC receptacles.

The base product number is 102156, which covers the AMP-Latch series in this pitch and row configuration. No official successor or pin-compatible alternative is listed — the 34-position, 0.100" pitch, dual-row shrouded header is a standard AMP-Latch variant.

Voltage rating is 250 VAC — suitable for signal-level circuits within that ceiling. All 34 positions are loaded — no unpopulated contacts. The connector is supplied in bulk packaging.

Frequently asked questions

Is 102156-8 RoHS compliant?

The contact finish on the post is tin-lead (100 µinch), which is not RoHS-compliant. Verify your application's exemption requirements.
