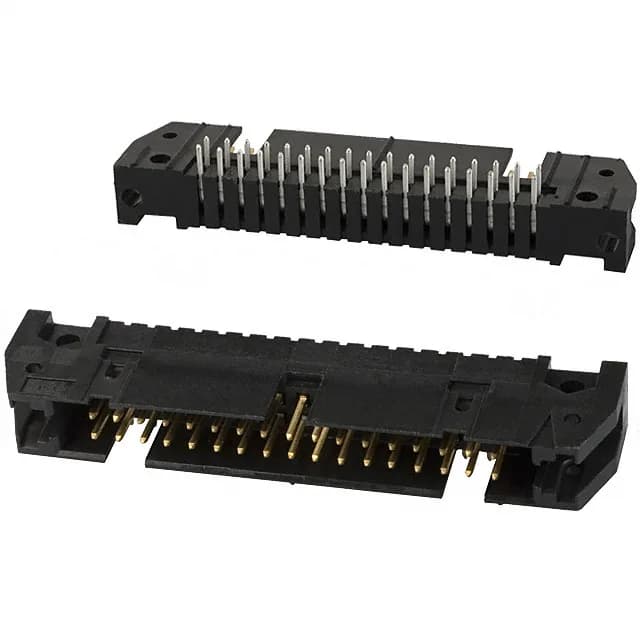

34-position AMP-Latch with shrouded 4-wall
The 102159-8 is the 34-circuit member of TE's AMP-Latch shrouded header line, designed for board-to-cable/wire interconnect with a push-pull fastening system. It carries gold or gold-palladium mating contacts rated 1A per contact at 250VAC, with a 15.0µin (0.38µm) mating finish thickness, and mounts through hole right-angle with solder termination.
Dual-row 0.100" pitch with keying slot and flange
The dual-row layout at 0.100" (2.54mm) pitch and row spacing matches standard IDC ribbon cable patterns, with a shrouded 4-wall design, keying slot, and mounting flange for alignment and retention. The glass-filled thermoplastic housing carries a UL94 V-0 flammability rating and operates from -65°C to 105°C.
