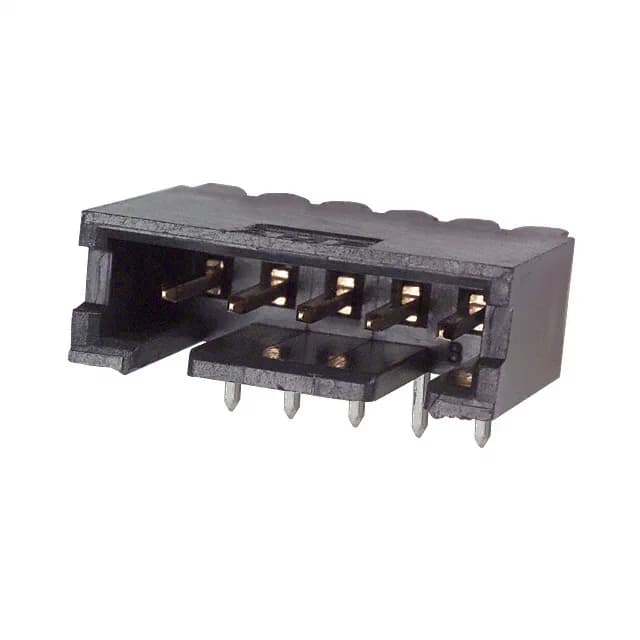

TE Connectivity AMPMODU Mod II, 102203-2, shrouded header, 5 circuits, 2.54mm pitch, right-angle through-hole, gold-plated male pins, 3A rated, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The contact finish is split: 15.0µin gold over phosphor bronze on the mating end for corrosion resistance and repeated mating cycles, and 100.0µin tin-lead on the solder tail for a reliable soldered joint. This is a common AMPMODU Mod II treatment — the gold thickness is modest but adequate for moderate-cycle applications in controlled environments.
No. The 102203-2 is listed as RoHS non-compliant because the solder post finish is tin-lead. If your project requires RoHS compliance, check the peer 1394090-1 (tin finish on post) or 1-1871673-2 (tin finish on post) — though those differ in pitch and position count.
