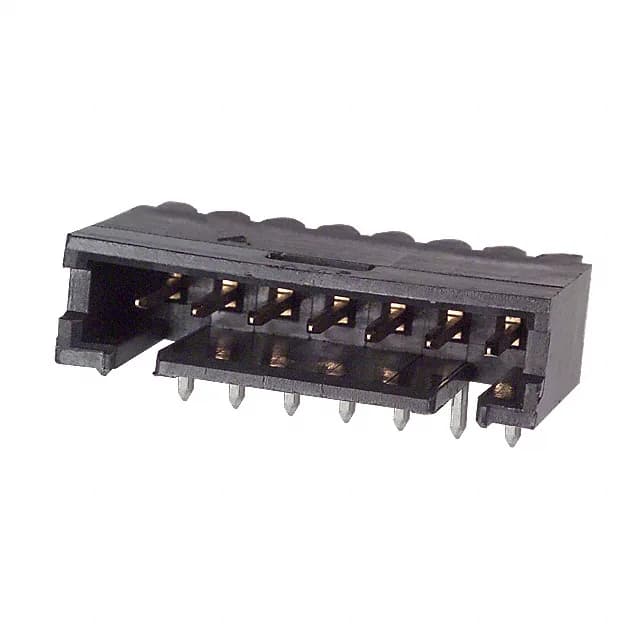

Right-angle 7-position header for tight board layouts
The shrouded 4-wall housing in black thermoplastic (UL94 V-0) protects the male pins and guides the mating receptacle.
The mating pin length is 0.240" (6.10mm), and the post length for solder-through-hole is 0.110" (2.79mm). These dimensions set the board-to-board stack height and clearance for the right-angle bend.
No stock-holding claim; availability varies by distributor.
Comparison with a functional peer: 1394090-1
The 1394090-1 is a 6-position, single-row header with a 0.112" (2.85mm) pitch, also right-angle through-hole and shrouded. The 102203-4 offers one more position, a tighter 2.54mm pitch, and gold mating for better corrosion resistance and cycle life.
